If graphite is only an occasional job on your floor, a standard CNC mill might get by. But once graphite becomes a regular part of the mix — molds, electrodes, or precision components — the gap between a general-purpose mill and a machine actually built for graphite starts to show up in tool wear, downtime, and part consistency.
Where Standard CNC Mills Fall Short on Graphite
Standard mills are built around metal-cutting assumptions — coolant flow, chip evacuation, spindle speeds tuned for metal removal rates. Milling graphite on a machine graphite cnc setup isn't designed for usually means faster tool wear, dust contamination of guideways, and more frequent maintenance than the shop planned for. Graphite doesn't behave like metal: it produces fine abrasive dust instead of chips, it's brittle rather than ductile, and it needs faster feed rates to avoid chipping.
What a Dedicated Graphite CNC Does Differently

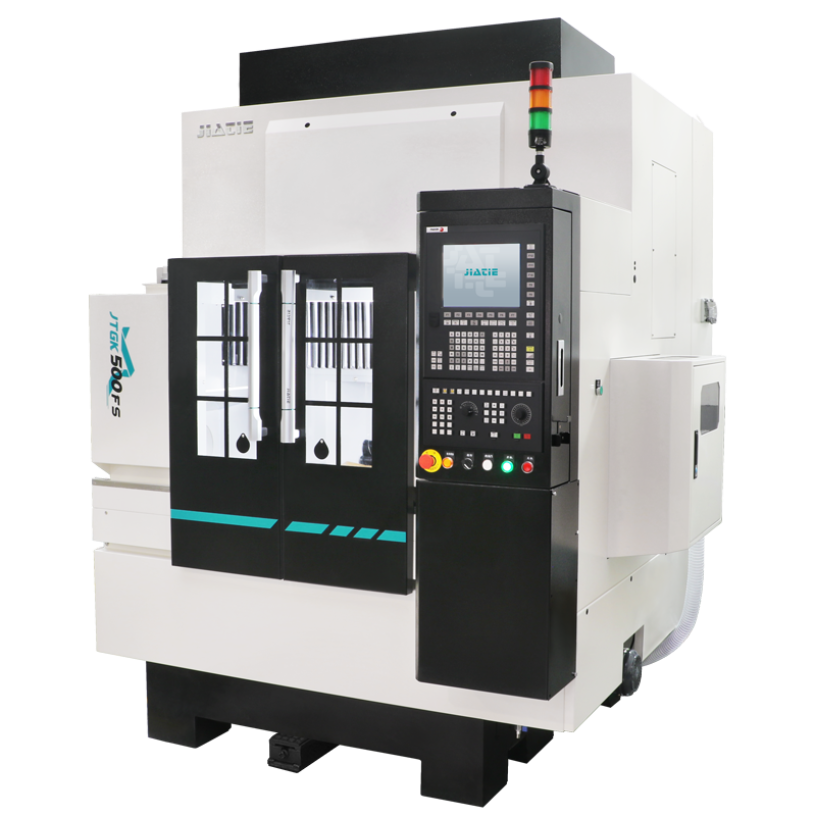

Dust management — sealed protective housings and dedicated dust collection, like on the JTGK-500FS, keep graphite dust from settling on guideways and affecting long-term accuracy.
Structural rigidity at speed — a box-type Z-axis structure, as on the JTGS-600, holds stability during the fast feed rates graphite cutting requires, where a standard mill's frame may start to vibrate.
Tooling setup — dedicated graphite machines are configured for diamond-coated or carbide tooling rated for graphite's abrasiveness from the start, instead of retrofitting tool holders meant for metal.
Quick Decision Guide
Stick with a standard mill if: graphite is an occasional, low-volume job and the parts aren't precision-critical.
Move to a dedicated Graphite Machining Center if: milling graphite is a recurring part of production, tool wear or dust is already causing downtime, or your parts (molds, electrodes, precision components) need consistent tolerances batch after batch.
KEJIE's Graphite Machining Center Range
KEJIE's Graphite Machining Center line spans models built for different batch sizes and part geometries, from detail-focused electrode work to larger mold components — see the Precision Molds/Electrodes and Graphite Electrode application pages for how specific models map to your part type.
FAQ
Can I run graphite on my existing CNC mill occasionally without buying a dedicated machine?
For low-volume, non-critical jobs, yes — but expect faster tool wear and extra cleanup, and watch for dust affecting other work done on the same machine.
What's the biggest cost difference between the two approaches?
It usually shows up in tooling replacement frequency and machine downtime for cleaning, rather than the upfront machine price alone.
Tell us your graphite part volume and tolerance needs — we'll help you figure out if a dedicated machine makes sense for your shop.
