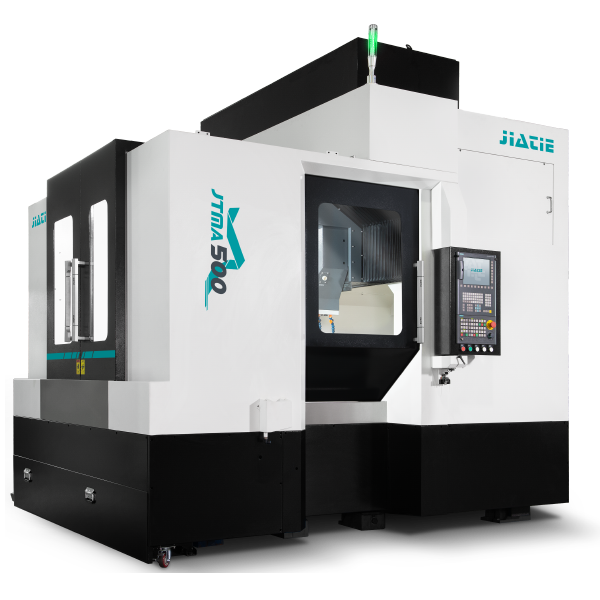

JTMA-500 5-Axis High Speed Machine

5-axis linkage precision milling of metal materials

Processing of 5-axis products such as molds and precision parts

copper, aluminum, steel, stainless steel, titanium, quenched materials, polymer materials, etc.

Inquire Now

Advantages of The Product

Entire series equips with RTCP function

Ensure high-accuracy smooth 5-axis simultaneous machining

Advantage gantry structure

Provides good dynamic properties and accuracy stability for simultaneous machining accuracy

JlATlE Direct Drive Rotary

Fast response onrotarymotion,accomplish reliable 5-axis simultaneous function

Features of The Product

Fully closed loop control technology makes machine machining more accurate and reliable.
High-efficiency and high-accuracy machining.
Excellent human-machine interaction design ensures the operational comfort and convenience for operator.

Gantry structure makes machine dynamic property and precision retention better.
Equip with DD direct drive 5-axis rotary tables.
The moving components are completely isolated from the machining area that is easy for machine cleaning.

A large torque or high-speed spindle is optional for meeting machining needs of different industries.

Application Cases

Robot gear parts

Impeller

5-Axis Composite Testing Part

5-Axis Lens

5-Axis Car Light

Spinal Intraosseous Expander

Femoral Condyle Testing Part

Earphone Mold

Teeth Shape Electrode

Meniscus Prosthesis Part

Specifications

Items	Technical Parameter
X/Y/Z travel	600/800/500mm
Work table dimension	Φ500mm
Max workpiece height	310mm
Max load of worktable	250kg
Machine net dimension	2910×3430×3150mm
Machine net weight	15000kg
Click for details in PDF	Specification Download

1741764611315634.pdf
