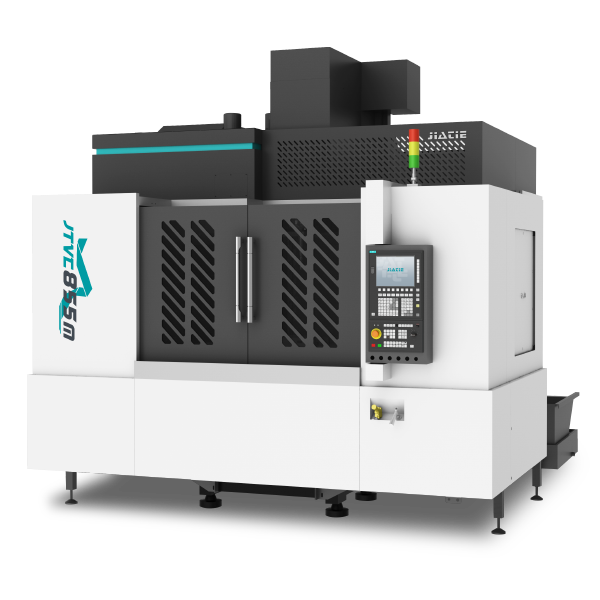

JTVC-855M Vertical Machining Center

Fast Cutting High Rigidity Large-torque

Component mass production in the industries of automotive accessories, aviation and aerospace, 3C products, industrial automation, communication, AI liquid cooling,etc

copper,aluminum,castingiron, steel,stainless steel, etc

Inquire Now

Advantages of The Product

Machine adapts FEM analysis

Improves machine weight-rigidity ratio.Machine equips with lightweight moving component,ensures stabilityof high acceleration movement

3-axis ball screw and linear guide perfectlymatches the machine property

Perform outstanding rigidity and accuracy under heavy load

Spindle with powerful motor and active coolingsystem

Ensure sufficient output during heavy cutting and dynamic cutting

Features of The Product

Years of CNC machine design and manufacturing experience combines with finite element FEM analysis, the main components such as base, column and saddle are all using particular high-rigidity structure. And eliminate the internal stress. These ensure the machine dynamic performance is stable and reliable.

The design of three-axis linear precise guide has fast responses of acceleration and deceleration. This effectively improves machine machining efficiency and machining accuracy. Even if it is under high bear load, the performance is still excellent.

Short nose BBT40 spindle equips with strong motor and forced cooling system, this ensures machine cutting performance is better.
Stable base and column equip with lightweight components of the moving axes, this ensures the stability of machine acceleration and deceleration motions.
Automatic chip removal device makes cleaning more convenient.

Application Cases

New-Energy Car Component

New-Energy Car Charging Gun Mold

New-Energy Component Part

Workpiece Shape Copying Fixture

Engine Cover

Engine Shell

Electric Terminal Box

Specifications

Items	Technical Parameter
X/Y/Z travel	800/500/550mm
Work table dimension	1000 x 500mm
Max workpiece height	550mm
Max load of worktable	800kg
Machine net dimension	2580×2210×2750mm
Machine net weight	5500kg
Click for details in PDF	Specification Download

1763790532886856.pdf
