Hard Cut Material
Home > Solutions for Industries > Hard Cut Material

Application Cases

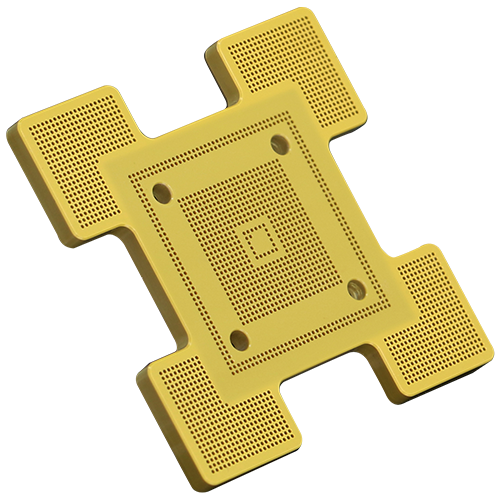

BGA Vacuum Fixture Needle Plate
BGA Vacuum Fixture Needle Plate
Material: Torlon
Dimension: 30x30x2 mm
Machining properties:
1. Holediameteraccuracy +0.005mm,hole centerdistance accuracy ±0.005mm;
2. Minimum machiningvibration, hole wall is smooth and no burr,single drill can continuouslydrill 5000+ holes.

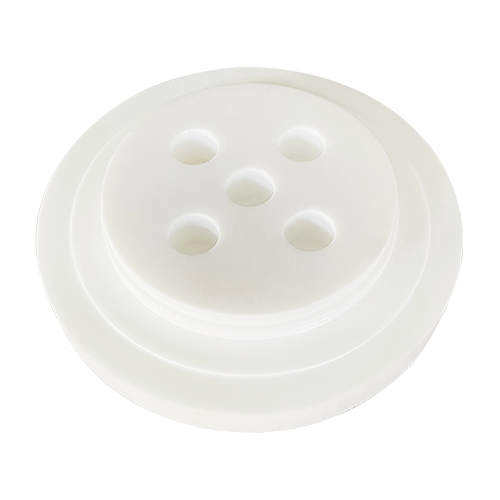

Structuralceramic
Structuralceramic
Material: Ceramic
Dimension: Ø80x20mm
Machining properties:
1. Dimension tolerance ±0.0lmm.
2. Accurate machining dimension, grinding mark evenly dispersed no breakage on the edge.
Ceramic Medium Filter
Ceramic Medium Filter
Material: Ceramic
Dimension: 53x22x6.2 mm
Machining properties:
1. Dimension tolerance±0.01mm.
2. Hole center distance tolerance ±0.005mm.

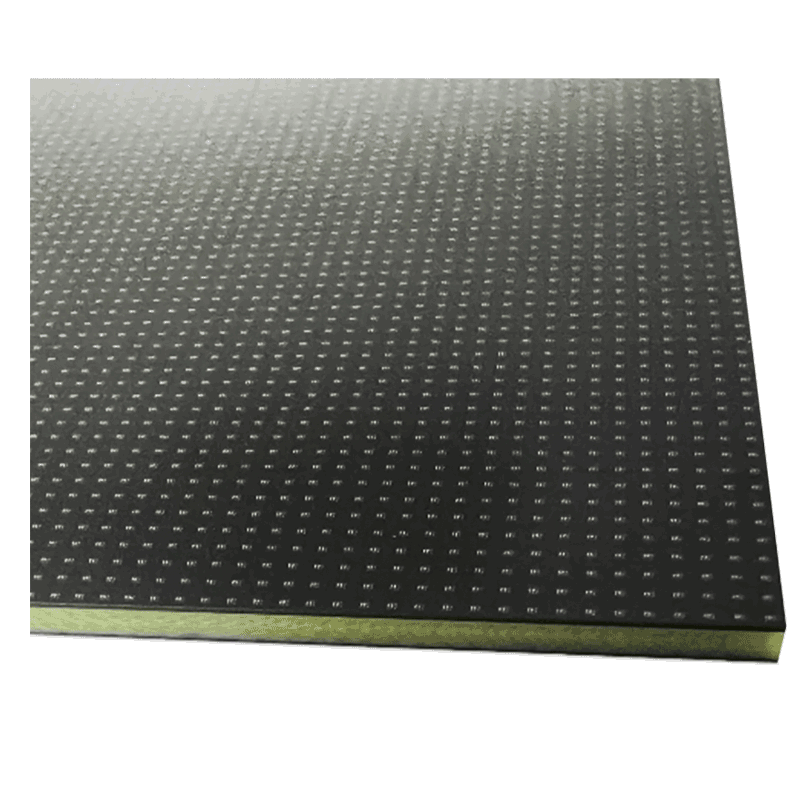

Mini Led
Mini Led
Material: PCB
Dimension: 168.71x149.96mm
Machining properties:
1. Outerdimensionaccuracy±0.005mm
2. Nocuttingflaw,high surface flatness
3. Equipwith machining package, reduce programming process,simple and high-efficiency.

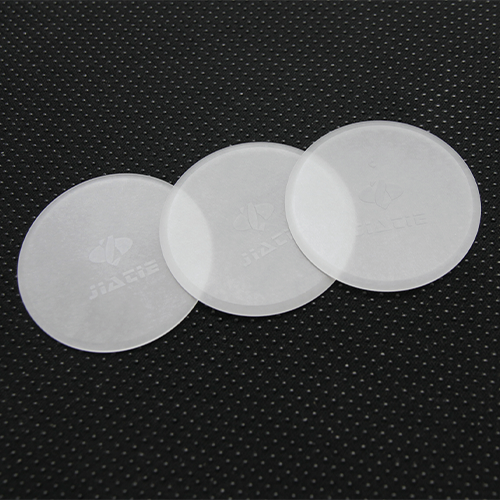

Makeup Box Cover
Makeup Box Cover
Material: Acrylic
Dimension: Ø74x11mm
Machining properties:
1. Roughness Sa<0.058μm,
2. Finished product has hightransparency, the machining plane is flat and has no tool mark.

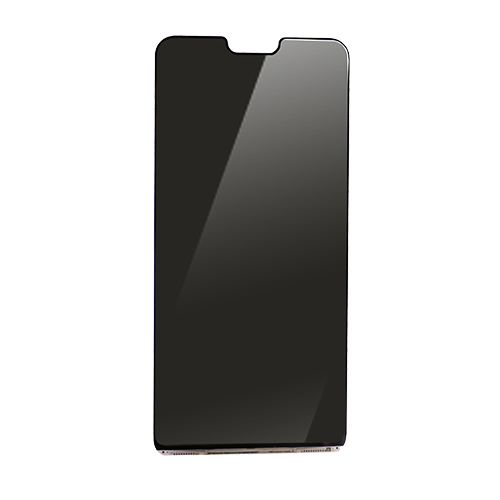

Phone 3D screen
Phone 3D screen
Material: Glass
Dimension: 120x80x0.6 mm
Machining properties:
1. Dimension accuracy ±0.01mm.
2. Use probe for on-machine measure and compensation function, improve yield on mass production.

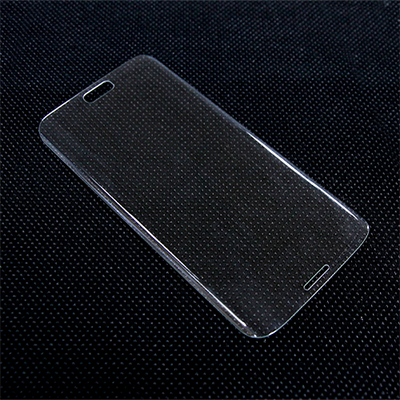

Phone Glass Cover
Phone Glass Cover
Material: Glass
Dimension: 120x80x0.6 mm
Machining properties:
1. Dimension accuracy±0.0lmm.
2. Accurate product grinding dimension, no flaw on the edge, high strength.

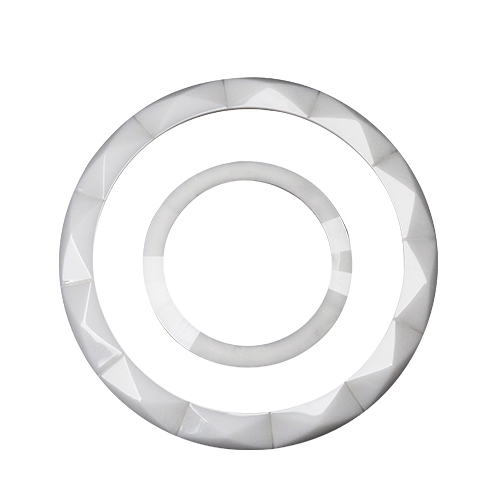

 Smart watch outer decorating part
Smart watch outer decorating part
Material: Ceramic
Dimension: 120x80x0.6mm
Machining properties:
Grinding profileis accurate and noover cutting,scratch proof, with good corrosion resistance and good bio-compatibility.

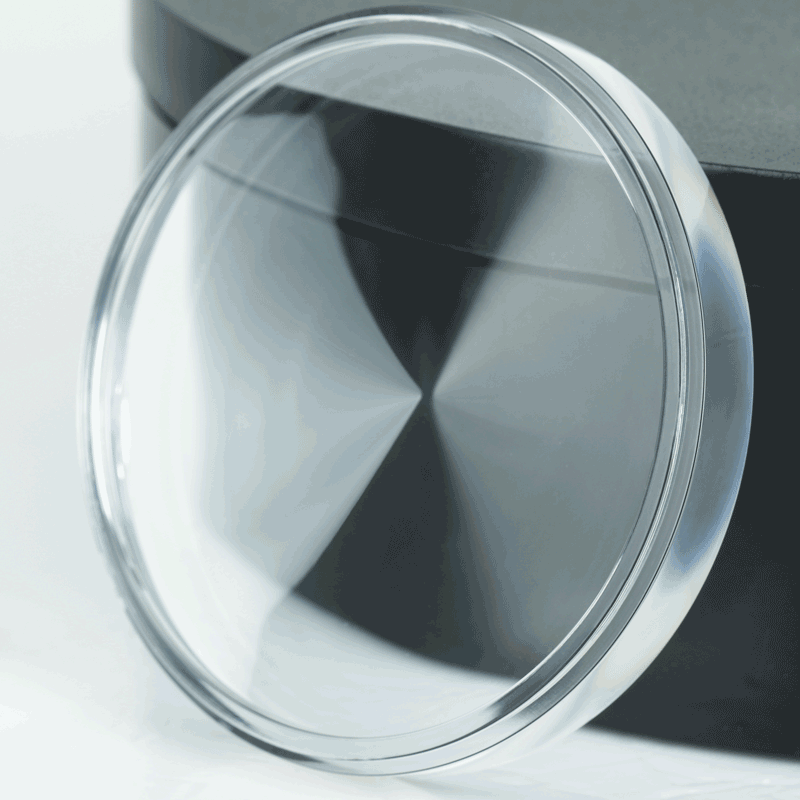

Watch cover plate
Watch cover plate
Material: Sapphire
Dimension: Ø42mm
Machining properties:
1. Dimension accuracy ±0.0lmm;
2.Stable grinding wheel, long grinding wheel fatigue life.

Recommended Machines

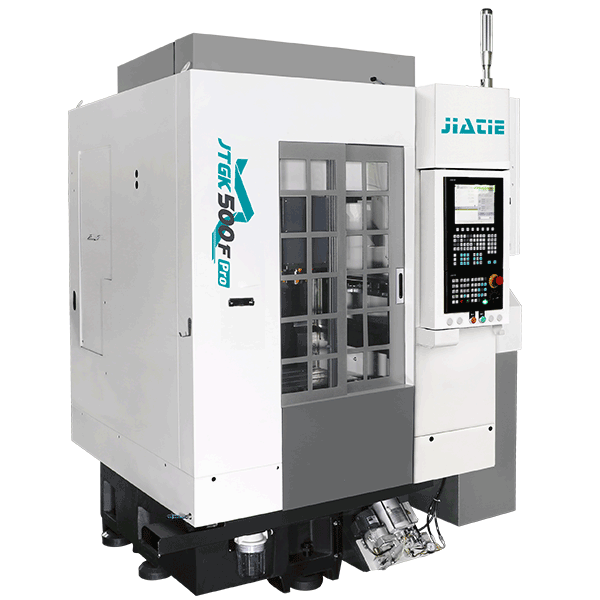

JTGK-500F Pro CNC Grinding Machine

High RPM High Accuracy for Hard to cut Material

Machining for industry applications of aviation and aerospace, medica product,semi-conductor,etc

glass, ceramic, sapphire,silicon carbide, silicon nitride and etc,titanium,engineering plastics

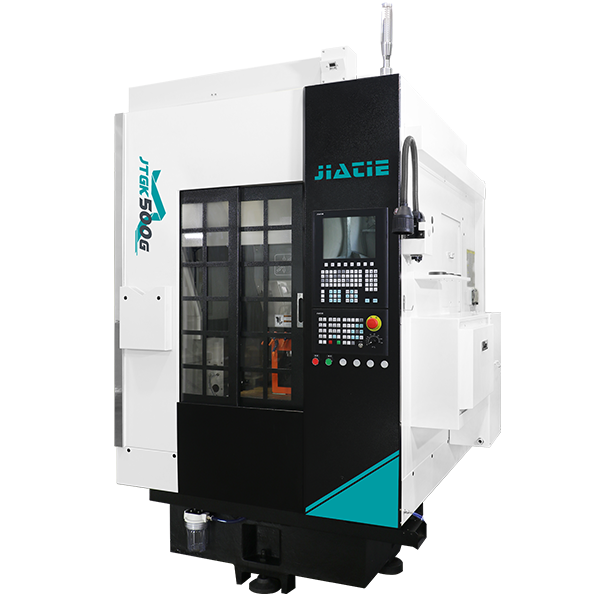

JTGK-500G CNC Grinding Machine

High RPM High Accuracy for Hard to cut Material

Machining for industry applications of aviation and aerospace, medicaproduct,semi-conductor,etc

glass, ceramic, sapphire,silicon carbide, silicon nitride and etc,titanium,engineering plastics

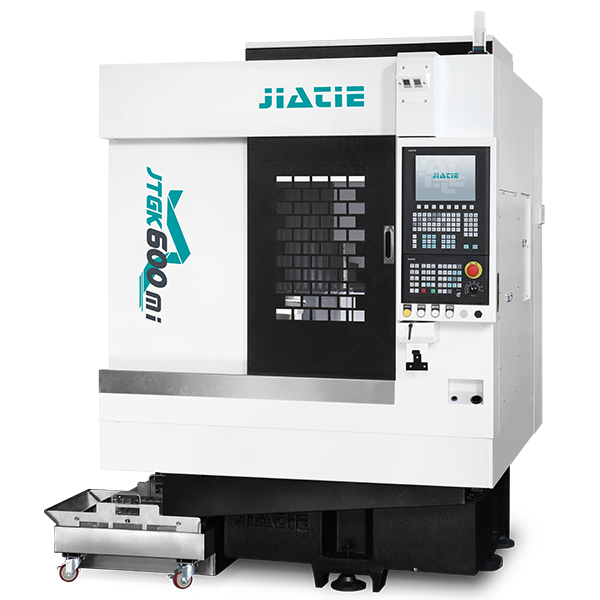

JTGK-600mi CNC Grinding Machine

one-stop overall solutiondedicated for the special cutting processing requirements of MiniLED.

Application area:Semi-Conductor

Machining material:MiniLED

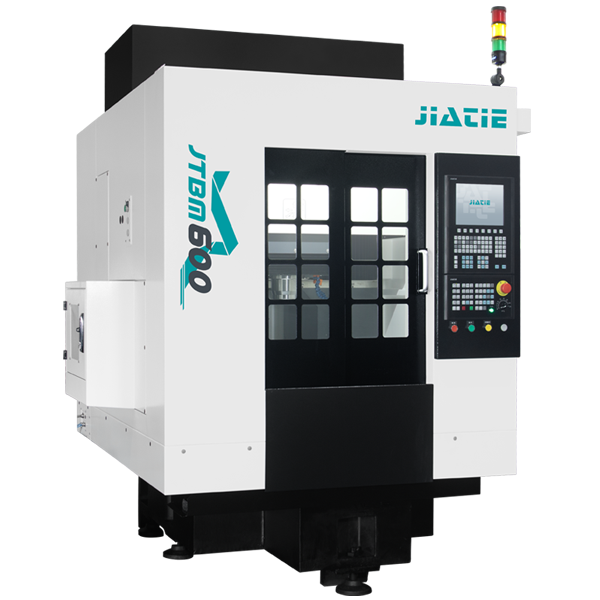

JTBM-600 CNC Grinding Machine

High RPM High Accuracy for Hard to cut Material

Machining for industry applications of aviation and aerospace, medicaproduct,semi-conductor,etc

glass, ceramic, sapphire,silicon carbide, silicon nitride and etc,titanium,engineering plastics
