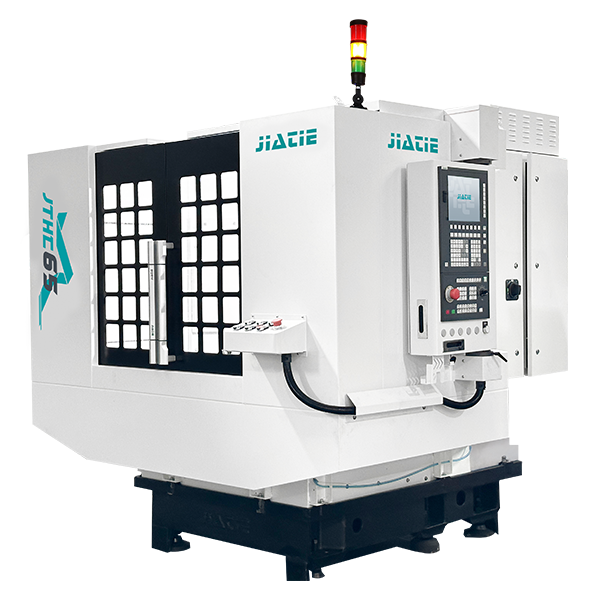

JTHC-65 Horizontal Machining Center

Accurate Horizontal Machining Multi-Angle Large Size Machining

Large-size polyhedral part machining

aluminum,iron casting, steel,stainless steel,titanium alloy, etc

Inquire Now

Advantages of The Product

Equip spindleand transmission parttemperature control system

Effectively control thermal deformation duringhigh-speed operation,ensure machine stability.

Equip with various options such as ATC

Rotary table,through spindle coolant,etc,to increase factory operation efficiency.

Bears heavy cuttingload

Improves machiningefficiencyand chipremovingperformance.

Features of The Product

Designed in advanced concept, can meet small or medium scale production, set a variety function in one, multi-axis and multi-process processing is achievable, improve production efficiency and processing accuracy.

Compact structure, small footprint, easy layout and moving in the workshop, reduce production costs

Integrating with milling, drilling, tapping and other processing functions, high precision processing of a variety of shapes and sizes workpiece can be achievable through the replacement of tools and fixture.

High degree automation, equipped with automatic tool change device to change the tool automatically during the processing, that improves the processing efficiency.

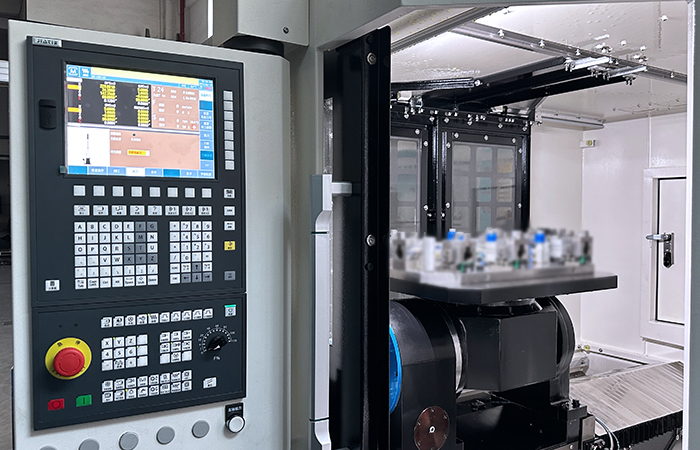

Advanced NC system, our latest self-developed model JT- 810 applied, is with friendly man-machine interface and powerful programming functions.

Application Cases

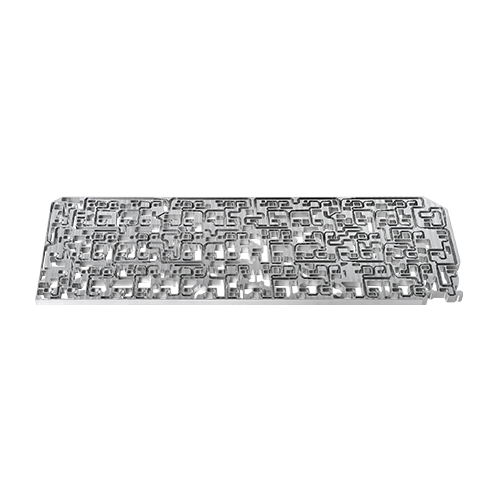

Telecommunications Base Station Filter

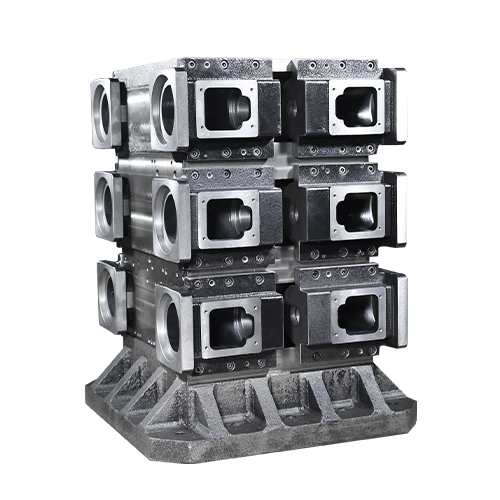

Motor Base Workpiece Shape-Copying Fixture

Specifications

Items	Technical Parameter
X/Y/Z travel	630/700/340mm
Work table dimension	600 x 500mm
Max workpiece height	410mm
Max load of worktable	100kg
Machine net dimension	2290×2600×2330mm
Machine net weight	3200kg
Click for details in PDF	Specification Download

1741763862985471.pdf

Other Similar Machines

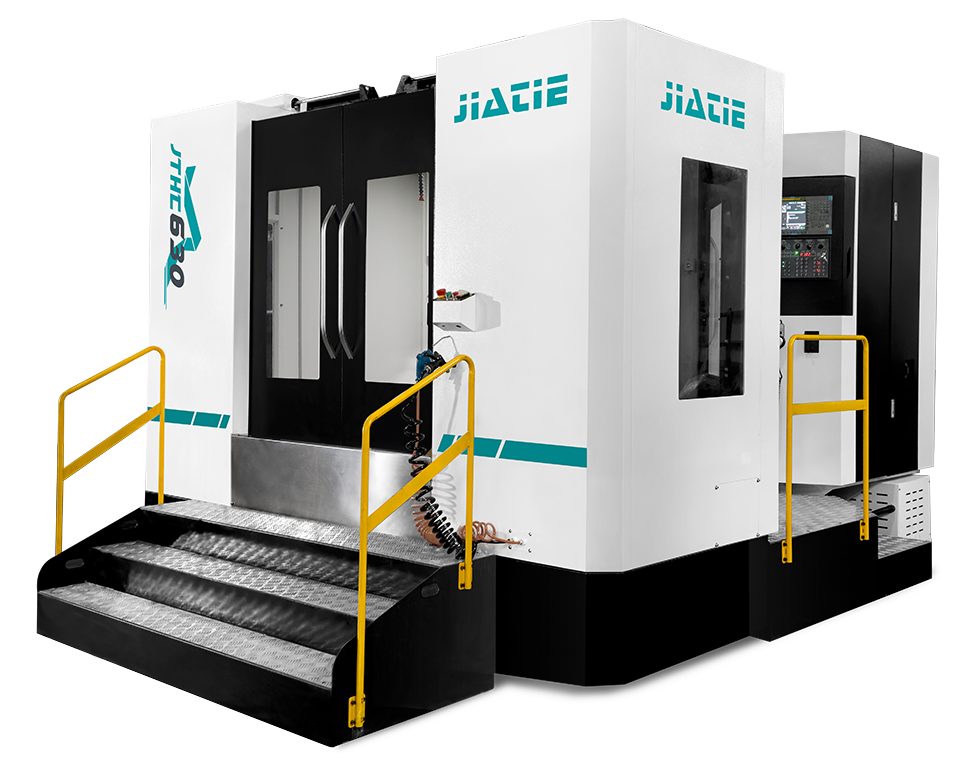

JTHC-630 Horizontal Machining Center

Accurate Horizontal Machining Multi-Angle Large Size Machining

Large-size polyhedral part machining

aluminum,iron casting, steel,stainless steel,titanium alloy, etc

View details

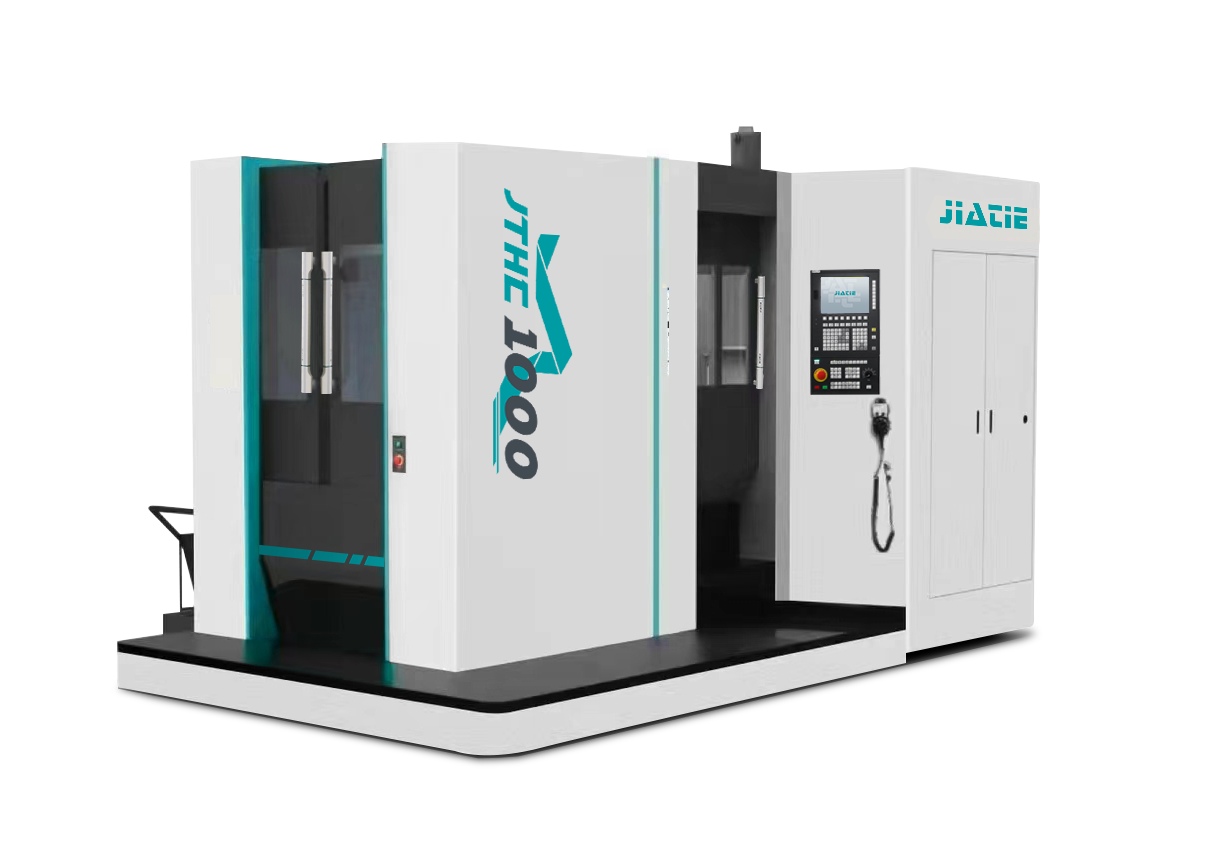

JTHC-1000 Horizontal Machining Center
