Using a standard VMC to mill graphite is a costly mistake. Because graphite dust is both highly conductive and abrasive, it will quickly penetrate standard machine covers, causing severe wear on linear guideways and catastrophic short circuits in the electrical cabinet. To safely and efficiently produce EDM components, you need a dedicated graphite machining center. These specialized machines feature fully sealed structures, advanced vacuum systems, and high-speed spindles designed specifically for brittle materials, ensuring long-term precision and eliminating the risk of premature machine failure.
Graphite Machining Center vs Standard CNC: The Core Differences
When evaluating a graphite Machining Center vs standard cnc, the differences go far beyond the exterior look. The entire mechanical structure is engineered differently to handle the harsh reality of graphite milling.
1. The Critical Role of Graphite Dust Protection in CNC
Standard CNC machines use telescopic covers that leave tiny gaps. Graphite dust is so fine that it behaves like a fluid, easily slipping through these gaps. Once inside, it mixes with way lube to form an abrasive grinding paste that destroys ball screws and guideways within months. Furthermore, graphite is electrically conductive. If it reaches the control cabinet, it will short out expensive drives and motherboards.

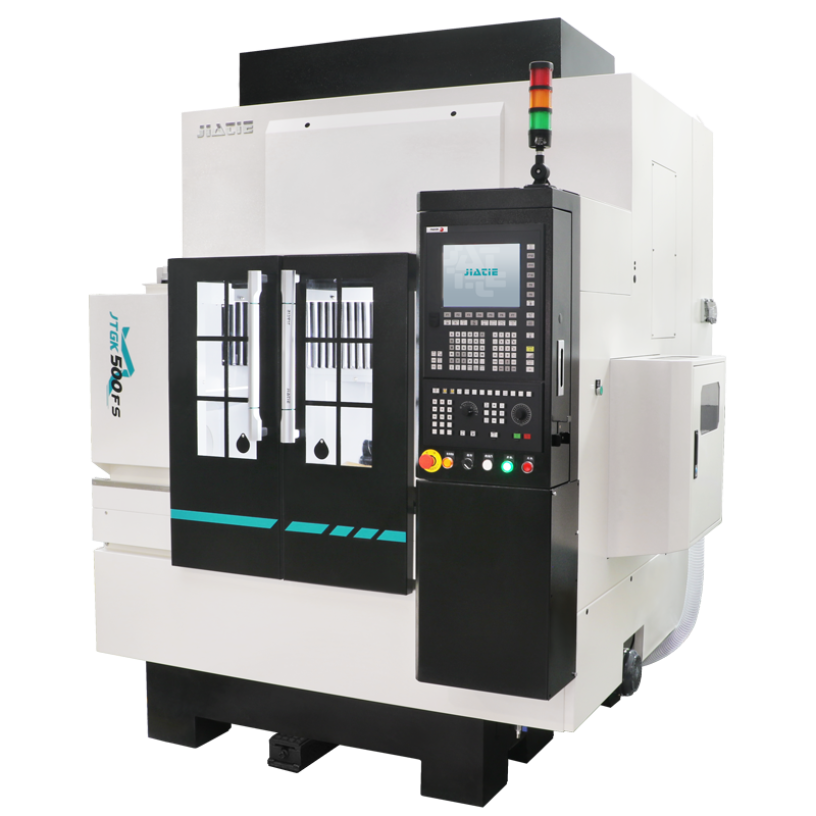

A true graphite cnc machine solves this with a fully sealed enclosure. It utilizes positive air pressure in the spindle and electrical cabinets to blow dust away, combined with heavy-duty wet or dry vacuum extraction systems to remove the dust right at the cutting zone. Proper graphite dust protection in cnc is the number one reason you cannot use a standard mill.
Processing EDM electrodes and worried about machine lifespan? Send us your drawing, and our engineering team will provide a customized machining solution within 24 hours.
2. Spindle Speed and Surface Finish Quality
Graphite is a brittle material. It chips and breaks easily if the cutting tool engages with too much force at low speeds. Standard CNC machines typically run at 8,000 to 12,000 RPM, which is not fast enough for fine graphite details. A high speed Graphite Machining Center is equipped with motorized spindles running at 20,000, 30,000, or even higher RPMs. This high speed, paired with a low feed rate per tooth, ensures a mirror-like surface finish and prevents edge chipping on intricate EDM electrodes.
3. Guideway Rigidity and Tool Wear
Because graphite causes rapid tool wear, the machine structure must be extremely rigid to minimize vibrations. Excessive vibration not only ruins the surface finish but also shatters expensive diamond-coated carbide tools. Specialized machines use heavily ribbed cast iron beds and premium linear guide rails to absorb vibrations.
Why the Mold Industry Needs a CNC Machine for Graphite Electrodes
Electrical Discharge Machining (EDM) is the backbone of the plastic injection mold industry. Traditionally, copper was used for EDM electrodes, but graphite has taken over because it machines much faster, does not warp under heat, and provides superior cavity details. However, to realize these benefits, mold makers must invest in a dedicated cnc machine for graphite electrodes. Using the right equipment reduces cycle times by up to 50% compared to milling copper, drastically improving your shop's overall throughput.
How to Choose Graphite CNC Machine from a Reliable Partner
When you know how to choose graphite cnc machine models, you avoid costly downtime. Always check these three factors before making a purchase:
Sealing Level: Ask the supplier to explain their spindle air-purge system and electrical cabinet sealing ratings.
Vacuum Integration: Does the machine come with an integrated high-efficiency dust collector (wet or dry)?
Controller Capabilities: The CNC controller must have high-speed processing capabilities (look-ahead blocks) to handle complex 3D toolpaths without stuttering.
As an experienced graphite milling machine manufacturer, KEJIE Technology engineers machines that survive the toughest dusty environments while delivering micron-level precision. Our models are specifically designed to maximize your EDM electrode production efficiency.
Ready to upgrade your graphite processing capabilities without worrying about machine failure? Contact KEJIE today for technical specifications, pricing, and factory-direct support. Let us help you select the perfect high-speed solution for your business.
