With the development of modern manufacturing, CNC technology has become an essential solution for precision machining. From automotive components and electronic parts to molds and industrial equipment, CNC machines help manufacturers achieve higher accuracy, better efficiency, and stable production quality.
Among various CNC equipment, CNC milling machines and CNC Machining Centers are two commonly used types. Because they share similar machining principles and structures, many manufacturers often ask: What is the difference between a CNC milling machine and a CNC Machining Center? Which one is more suitable for my production requirements?
Although both machines use computer numerical control systems to perform machining operations, they differ significantly in automation level, machining capability, production efficiency, and application range.
What Is CNC Technology?
CNC (Computer Numerical Control) is a technology that uses computer programs to control machine movements and machining processes. Instead of relying on manual operation, CNC systems interpret programmed instructions and control spindle movement, feed rate, cutting paths, and auxiliary functions.
Through CNC programming, manufacturers can produce complex components with high precision and repeatability. This technology is widely used in industries such as automotive, aerospace, electronics, medical equipment, and mold manufacturing.
What Is a CNC Milling Machine?
A CNC milling machine is an automated machining device developed from traditional milling equipment. It uses rotating cutting tools to remove material from a workpiece and create precise shapes, holes, slots, and surfaces.
Depending on the machine configuration, CNC milling machines can perform different machining operations including:
Plane milling
Side surface machining
Slot machining
Drilling
Contour machining
For simple or single-process machining applications, CNC milling machines provide flexible and efficient processing capabilities.
What Is a CNC Machining Center?
A CNC machining center is an advanced CNC machine that integrates milling, drilling, tapping, boring, and other machining processes into one automated system.
The main difference is that a machining center is usually equipped with an automatic tool changer (ATC). The machine can automatically select and replace different tools according to the machining program, allowing multiple processes to be completed in one setup.
A CNC machining center can significantly reduce manual tool changing, repeated positioning, and production preparation time.
CNC Milling Machine vs CNC Machining Center: Key Differences
1. Automatic Tool Changing Capability
The biggest difference between CNC milling machines and machining centers is the automatic tool changing system.
Many CNC milling machines require manual tool replacement when different machining operations are needed. A CNC machining center uses an automatic tool magazine, allowing multiple tools to be changed automatically during machining.
2. Machining Efficiency
Because machining centers combine multiple processes into one operation, they can reduce workpiece repositioning and improve production efficiency, especially for complex parts requiring multiple machining steps.
CNC milling machines are still an excellent choice for flexible machining tasks, prototypes, and parts requiring fewer operations.
3. Automation Level
CNC machining centers usually have a higher level of automation. They can automatically complete tool changes, machining sequences, and production processes according to programmed instructions.
This makes machining centers more suitable for batch production and manufacturers requiring stable output.
4. Application Range
CNC milling machines are commonly used for:
Simple mechanical parts
Prototype machining
Small batch production
Basic milling operations
CNC machining centers are suitable for:
Automotive components
Precision molds
Electronic housings
Medical parts
Complex industrial components
Vertical Machining Center and Horizontal Machining Center Differences
CNC machining centers can also be divided into different types according to spindle direction. The two most common structures are vertical machining centers and horizontal machining centers.
Both types provide high-precision machining capabilities, but they are designed for different production requirements.

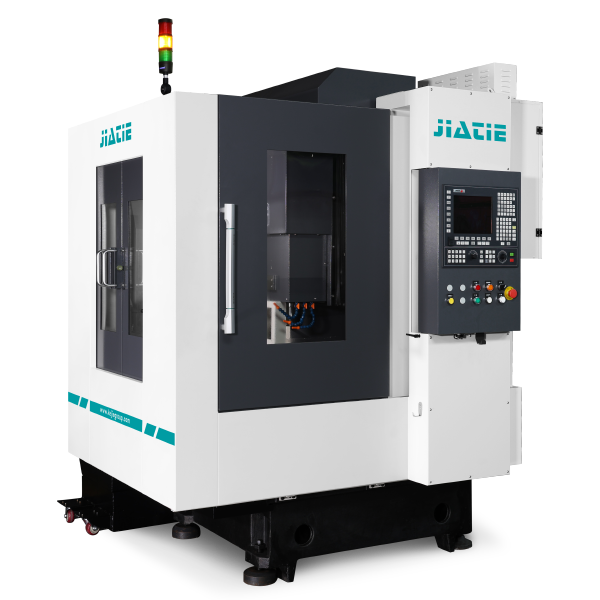

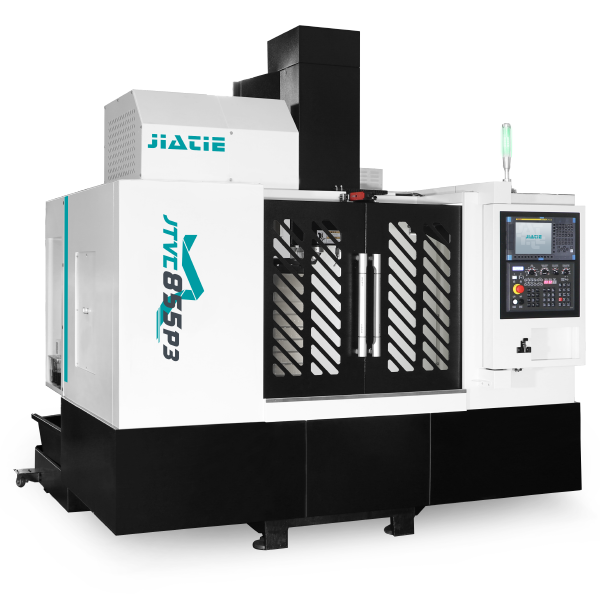

What Is a Vertical Machining Center?
A vertical machining center (VMC) is a CNC machine where the spindle is positioned vertically. The cutting tool moves downward to process the workpiece, making it suitable for a wide range of precision machining applications.
Vertical machining centers are widely used because of their compact structure, convenient operation, and excellent visibility during machining.
A vertical machining center is commonly used for:
Precision mechanical parts
Mold components
Electronic equipment housings
Automotive aluminum parts

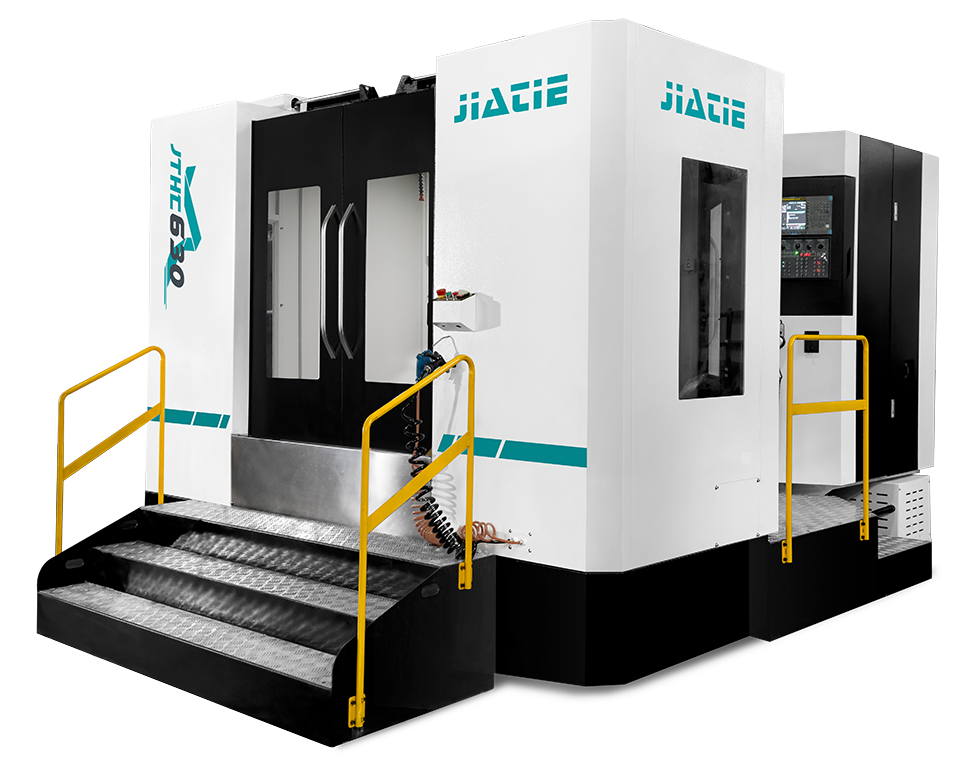

What Is a Horizontal Machining Center?
A horizontal machining center is a CNC machine where the spindle is positioned horizontally. This structure is especially suitable for machining large workpieces, box-shaped components, and parts requiring multiple side processing.
Due to the horizontal spindle design, chips can be discharged more easily during machining, which helps improve processing stability and surface quality.
Horizontal machining centers are commonly used for:
Engine components
Large mechanical structures
Complex box-type parts
High-volume production
CNC Milling Machine or CNC Machining Center: Which One Should You Choose?
Choosing between a CNC milling machine and a CNC machining center depends on your production requirements, part complexity, machining volume, and automation expectations.
Choose a CNC Milling Machine When:
Your parts require mainly basic milling operations.
You need flexible processing for different products.
Production volume is relatively small.
Manual tool adjustment is acceptable.
Choose a CNC Machining Center When:
Parts require multiple machining operations.
Higher production efficiency is required.
You need automatic tool changing.
Consistent quality is important for batch production.
Complex components require multi-angle machining.
How Does a CNC Machining Center Improve Manufacturing Efficiency?
The biggest advantage of a CNC machining center is process integration. Instead of moving a workpiece between different machines for different operations, a machining center can complete multiple processes in one setup.
This provides several benefits:
Reduced setup time: One-time clamping reduces repeated positioning errors.
Higher machining accuracy: Fewer manual adjustments improve dimensional consistency.
Improved production efficiency: Automatic tool changing reduces non-cutting time.
Better process control: Digital programs ensure stable machining results.
Applications of CNC Machining Centers
With excellent precision and automation capabilities, CNC machining centers are widely used across various industries.
Automotive Manufacturing
Automotive manufacturers use CNC machining centers to produce engine components, transmission parts, aluminum structures, and precision mechanical components.
Electronics and 3C Industry
Electronic products require lightweight and accurate metal components. CNC machining centers are suitable for producing aluminum housings, communication equipment parts, and precision structural components.
Mold Manufacturing
Mold production requires excellent accuracy and surface quality. High-performance CNC equipment helps manufacturers process complex mold cavities and precision components efficiently.
Medical Equipment Manufacturing
Medical components require strict dimensional control and reliable quality. CNC machining centers provide stable processing solutions for precision medical parts.
CNC Machining Center for Complex Parts
For components with complex structures, traditional machining methods may require multiple setups and additional processing steps. Advanced CNC solutions can simplify these processes.
A 5-axis CNC machining center allows the cutting tool to approach the workpiece from multiple angles, making it suitable for aerospace parts, precision molds, and complex curved surfaces.

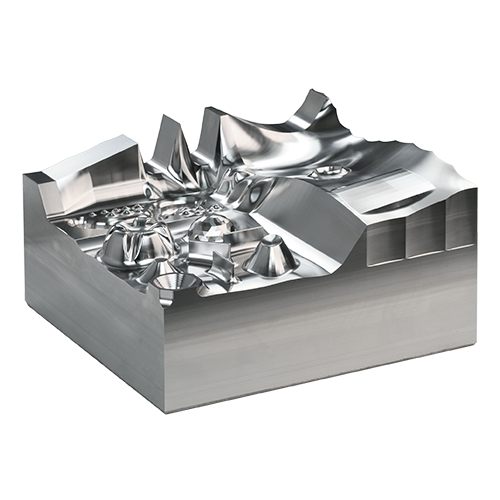

Material: S136 Steel
Dimension: 200x200x100mm
Machining properties:
1. Surface roughness Ra≤0.15μm ;
2. Curved surface profile accuracy ±0.015mm.

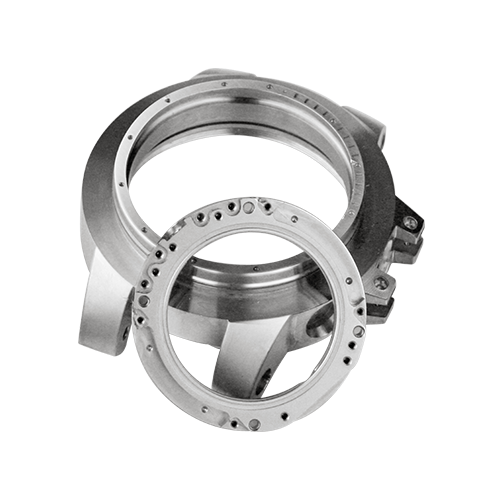

Material: titanium Ti-6A-4V
Dimension: 49x55x12mm
Machining properties:
1. Minimum cutting tool R0.15mm, small spindle vibration, improves cutting tool fatigue life;
2. Good machining consistency, high smoothness.

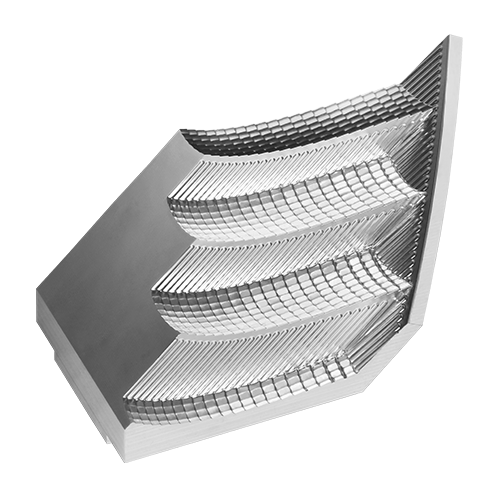

Material: 7075 Aluminum
Dimension: 106x50x53mm
Machining properties:
1. High smoothness, clear cross line of the curved surface, no burr, good machining consistency;
2. Surface roughness Ra≤0.08μm.

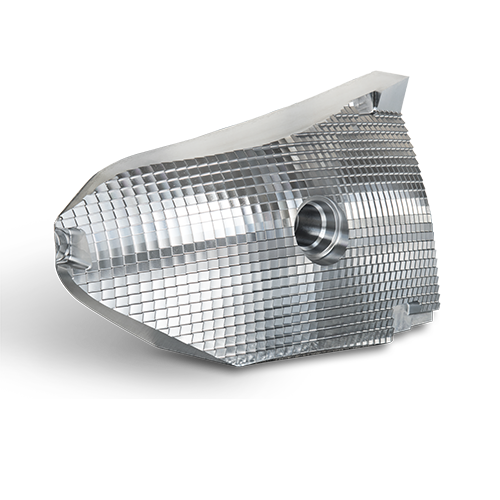

Material: mold steel
Dimension: 200x100 mm
Machining properties:
1. Tool mark is even and the corner is clear ;
2. Surface roughness Ra≤0.08μm.
Why Choose KEJIE Technology CNC Machining Solutions?
Selecting suitable CNC equipment is an important decision for manufacturers. The right machine not only affects machining accuracy but also influences production efficiency, operating costs, and long-term manufacturing competitiveness.
KEJIE Technology focuses on the development and manufacturing of CNC machine tools, providing reliable machining solutions for different industrial applications. Based on customers' production requirements, KEJIE provides equipment solutions that balance precision, efficiency, and flexibility.
From standard machining requirements to customized production challenges, KEJIE supports manufacturers with professional CNC equipment solutions, including CNC machining centers , precision machining equipment, and customized CNC systems.
Professional CNC Machining Equipment
KEJIE develops CNC equipment according to different manufacturing applications. Whether customers need stable production for standard components or advanced machining capability for complex parts, suitable machine configurations can be provided.
Customized CNC Solutions for Special Requirements
Different industries may require different machining processes, fixture designs, automation functions, and production layouts. A customized CNC machine can be developed according to specific product requirements.
KEJIE provides customized CNC machines for manufacturers that need specialized machining solutions, helping improve production efficiency and optimize manufacturing processes.
Supporting Different Manufacturing Industries
KEJIE CNC solutions are suitable for various industries, including automotive parts, precision molds, electronic components, medical equipment, and industrial manufacturing.
By combining CNC technology, automation capability, and engineering experience, KEJIE helps manufacturers achieve more efficient and reliable production.
CNC Milling Machine vs CNC Machining Center: Summary
CNC milling machines and CNC machining centers are both important CNC manufacturing equipment. They share similar machining principles but serve different production requirements.
CNC milling machines are suitable for flexible machining tasks, simpler processes, and applications that require fewer operations. They provide manufacturers with reliable and efficient milling capabilities.
CNC machining centers offer higher automation, automatic tool changing, and multi-process machining capabilities. They are ideal for complex parts, batch production, and manufacturers seeking improved efficiency.
The best choice depends on your specific machining requirements, production volume, part complexity, and future manufacturing goals.
Frequently Asked Questions About CNC Milling Machines and Machining Centers
Is a CNC machining center the same as a CNC milling machine?
A CNC machining center is developed based on CNC milling technology, but it usually includes additional automation features such as an automatic tool changer and tool magazine. This allows machining centers to complete more processes automatically.
What is the main difference between a CNC milling machine and a machining center?
The main difference is the automation capability. CNC machining centers usually have automatic tool changing systems, allowing multiple machining operations to be completed in one setup, while many CNC milling machines require more manual tool changes.
Which is better, CNC milling machine or CNC machining center?
Neither is universally better. CNC milling machines are suitable for flexible and simpler machining tasks, while CNC machining centers are better for complex parts, higher production efficiency, and automated manufacturing.
Why do manufacturers choose vertical machining centers?
Vertical machining centers provide good visibility, compact structure, high precision, and wide application flexibility. They are commonly used for molds, mechanical parts, aluminum components, and precision manufacturing.
When should I choose a customized CNC machine?
A customized CNC machine is suitable when standard equipment cannot fully meet production requirements, such as special workpiece structures, unique machining processes, multiple stations, or automation needs.
Conclusion
The difference between a CNC milling machine and a CNC machining center mainly lies in automation level, machining capability, and production efficiency. CNC milling machines remain an important solution for flexible machining applications, while CNC machining centers provide advanced capabilities for complex and high-volume manufacturing.
As manufacturing continues to move toward automation and precision production, choosing the right CNC equipment becomes increasingly important. By understanding the differences between various CNC solutions, manufacturers can select equipment that matches their production goals.
KEJIE Technology provides professional CNC machining solutions to help manufacturers improve efficiency, maintain machining accuracy, and achieve reliable long-term production performance.
