For precision manufacturers specializing in 3C electronics, medical devices, graphite molds and aerospace parts, the spindle is the core component of a 5-Axis Machining Center. Premature spindle failure directly leads to unstable machining accuracy, frequent unexpected shutdowns, and soaring maintenance and replacement costs, which seriously affect mass production efficiency and product yield. Most ordinary assembled spindles on the market are prone to wear, heat generation and vibration problems within 1–2 years of high-speed continuous operation, failing to meet the long-term stable operation requirements of high-precision 5-axis processing.
There are four main reasons for the short service life of traditional spindles matched with ordinary 5-axis equipment. The unreasonable single-sided cooling structure causes serious heat accumulation during high-speed operation above 20000 RPM, accelerating the aging and deterioration of spindle lubricating grease. The unoptimized spindle housing structure produces severe vibration during heavy cutting, forming periodic impact loads on internal precision bearings. The simple sealing structure cannot effectively block graphite dust, cutting fluid mist and impurities from invading the bearing cavity, which is a major hidden danger of spindle failure in harsh processing environments. Besides, mismatched third-party CNC control centerss will generate abrupt acceleration and deceleration shocks, greatly shortening the service cycle of the 5-Axis Machining Center spindle.
Scientific daily maintenance can effectively extend the service life of existing 5-axis machine tool spindles by about 30% without equipment replacement. Operators must preheat the spindle at a low speed for 3–5 minutes before full-load heavy cutting to avoid precision loss caused by cold start overload. The cooling water pressure should be stably maintained at 0.2–0.3MPa, and the cooling centers filter needs to be cleaned regularly every week to prevent pipeline blockage and poor heat dissipation. For lubrication maintenance, supplement special high-speed spindle grease on schedule: once every 3000 working hours for conventional processing environments, and shorten the cycle to 2000 hours for high-temperature and high-load grinding scenarios.
In daily operation, keep the spindle taper, pull stud and tool holder clean to avoid eccentric load caused by dirt accumulation, and check the front-end dust seal regularly, especially for graphite and brittle material processing. Optimize CNC program parameters, reasonably split roughing and finishing processes, reduce instantaneous peak load and torque surge of the spindle, and minimize mechanical loss of the 5-Axis Machining Center spindle during frequent start-stop operations.
To fundamentally solve the pain points of short spindle life and unstable precision of 5-axis processing equipment, KEJIE independently develops and produces high-performance original spindles, which are standard equipped on full-series high-precision CNC machine tools, focusing on solving durability problems for 5-axis precision machining scenarios.

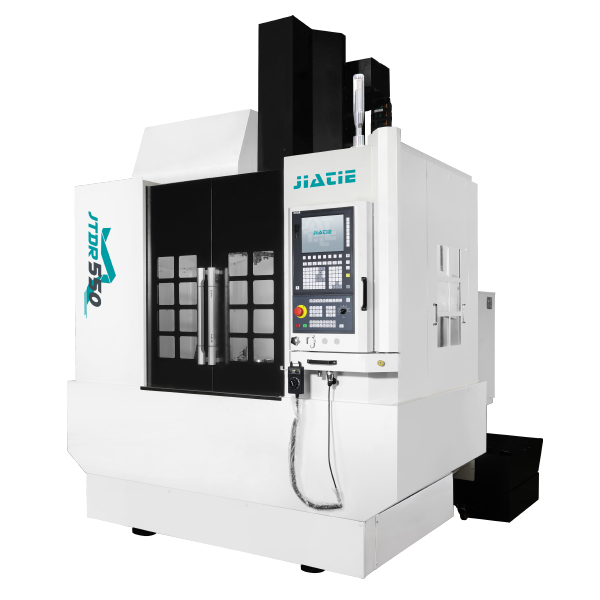

The JTDR-550 5-Axis CNC Machining Center adopts an integrated thickened alloy spindle housing optimized by FEM finite element simulation technology. The overall structural rigidity is greatly improved, which can effectively suppress cutting vibration, and the vibration value is stably controlled within 0.002mm during long-term heavy cutting. It is perfectly suitable for high-precision processing of difficult-to-cut materials such as titanium alloy and medical implant parts, realizing long-term stable operation of the 5-Axis Machining Center.
Verified by global overseas customer cases, KEJIE self-developed spindles have excellent stability and durability. Many manufacturing enterprises in Southeast Asia, Europe and North America have replaced traditional assembled spindles with KEJIE original supporting spindles. After long-term uninterrupted mass production, the annual spindle replacement and maintenance costs are greatly reduced, and the processing stability of 5-axis equipment is significantly improved.
If you are looking for a high-stability and long-life 5-Axis Machining Center and supporting CNC equipment for precision metal, graphite and hard brittle material processing, KEJIE provides one-stop professional equipment selection guidance and customized precision machining solutions according to your actual production needs.
