JTGK-500FS Graphite Machining Center

High-end graphite electrode and parts processing

Graphite materials, ceramic green embryos, calcium silicate

Inquire Now

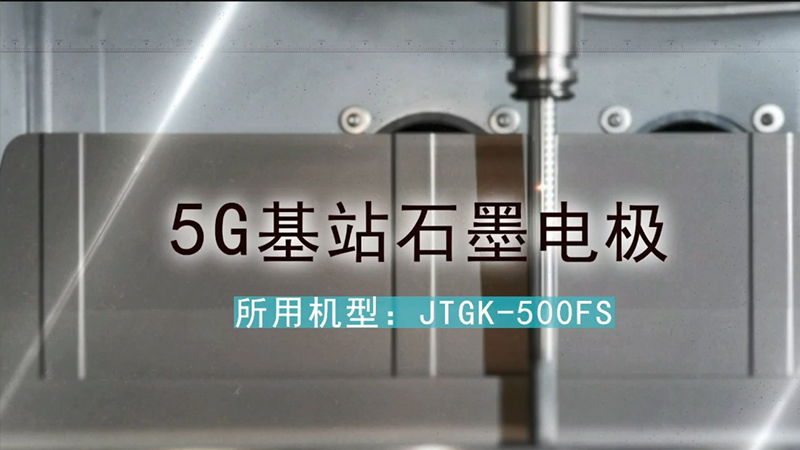

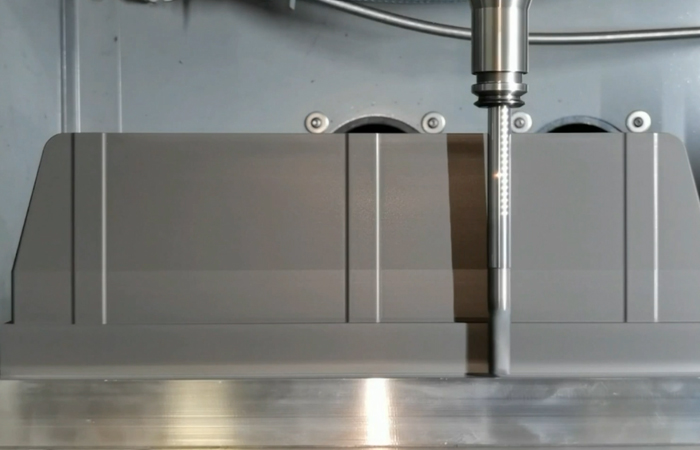

Product Processing Video

Advantages of The Product

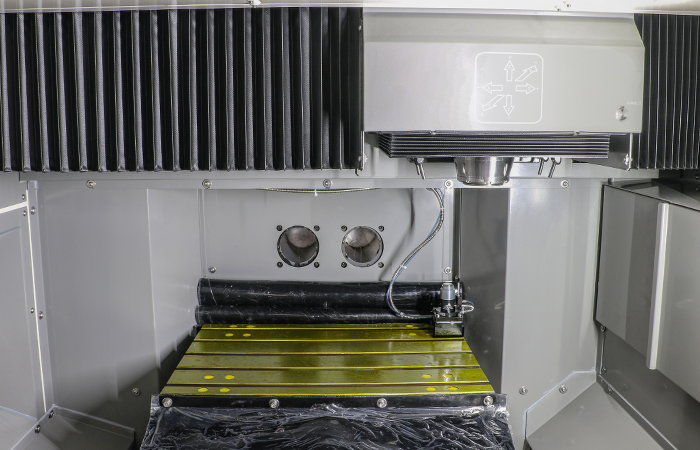

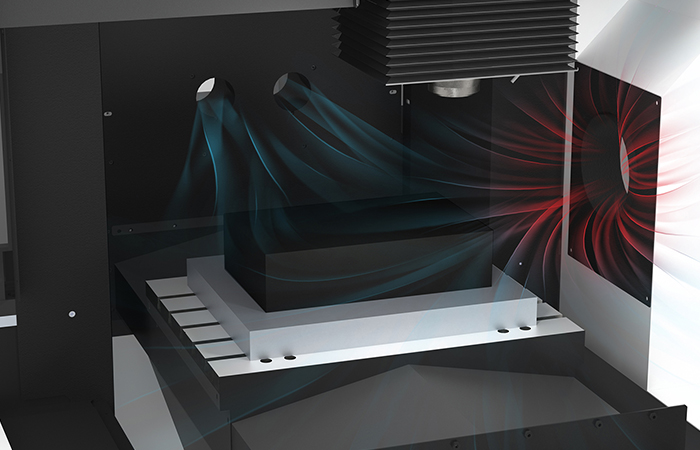

Fully enclosed airtight machine tool

Adopting box-type structure design,effectively reducing graphite dust accumulation and its impact on the long-term stability of the machine tool.

Strengthening the damping characteristics of the machine tool

Effectively improving the tool life under dry cutting applications, and optimizing surface roughness and precision.

The machine tool has a high moving speed

Supports fast feed cutting of graphite, and can be matched with automation to improve output efficiency.

Features of The Product

Box type structure design and the unique damping characteristic have the machine more excellent dynamic machining performance.

The axis movement system adopts special protective measures to increase the life of the moving parts.

Multi-function optional, suitable for different demands of processing.

Application Cases

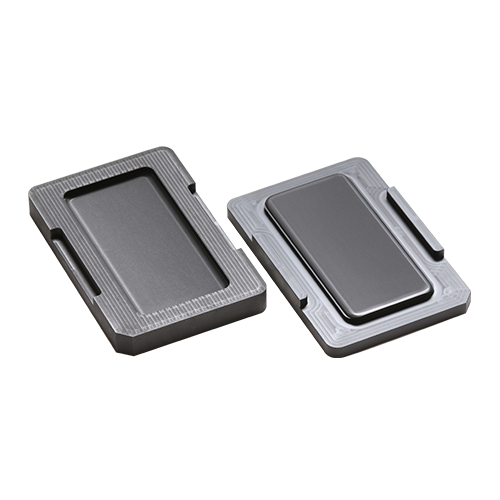

Glass Heat-Bending Graphite Mold

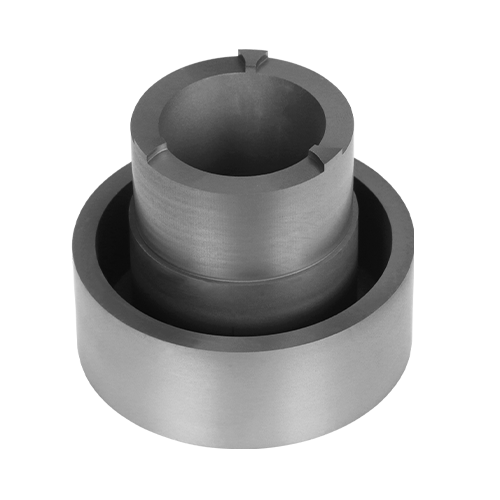

Graphite Mold

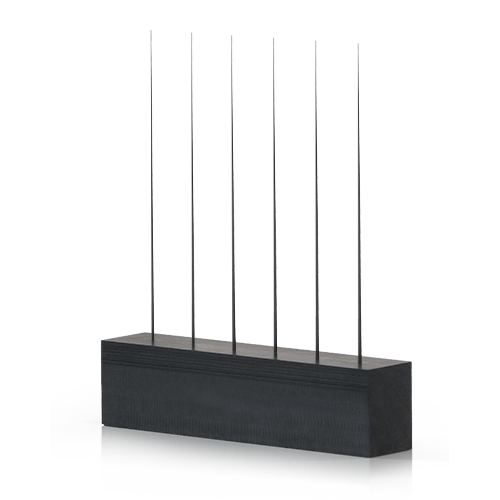

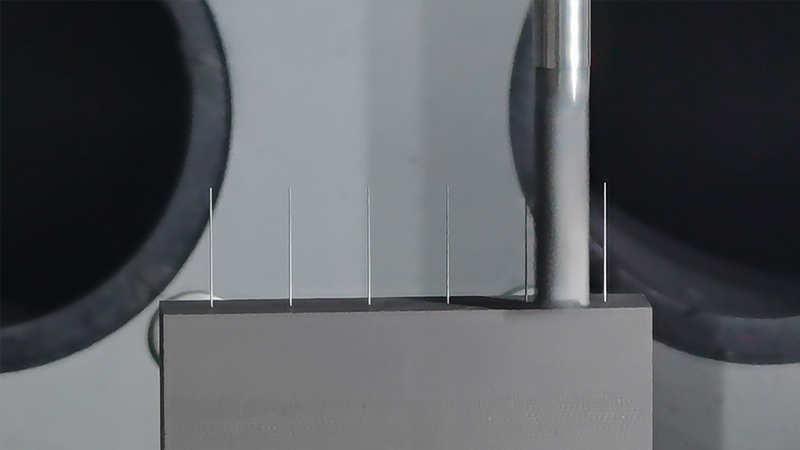

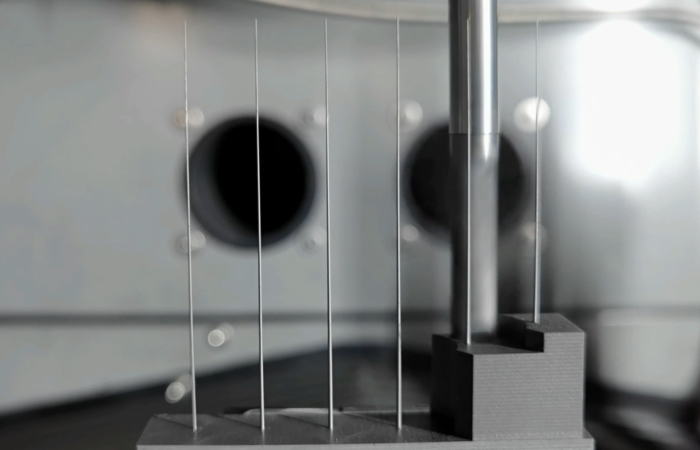

Graphite Electrode (Needle Shape)

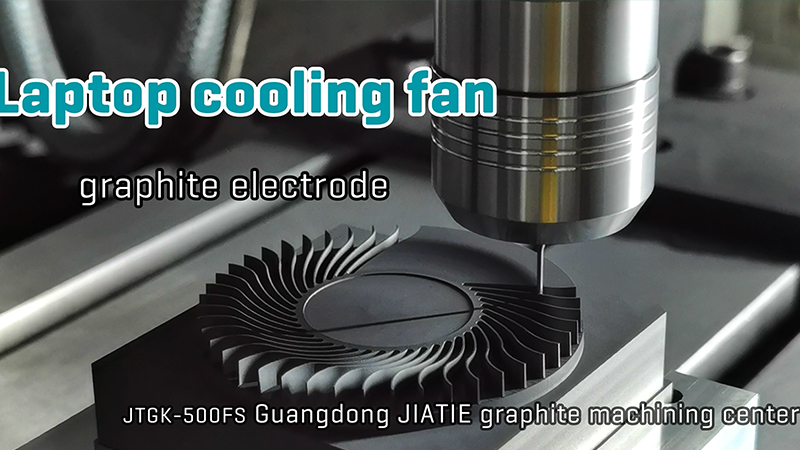

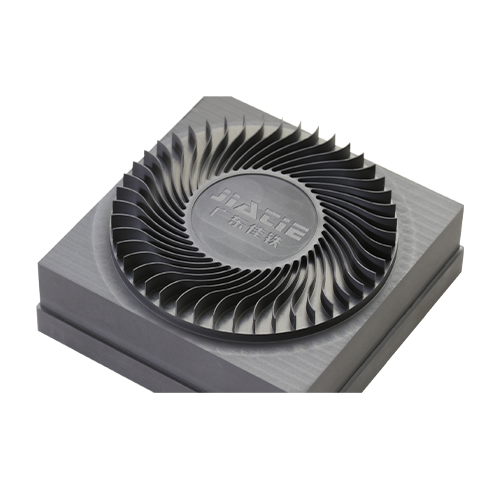

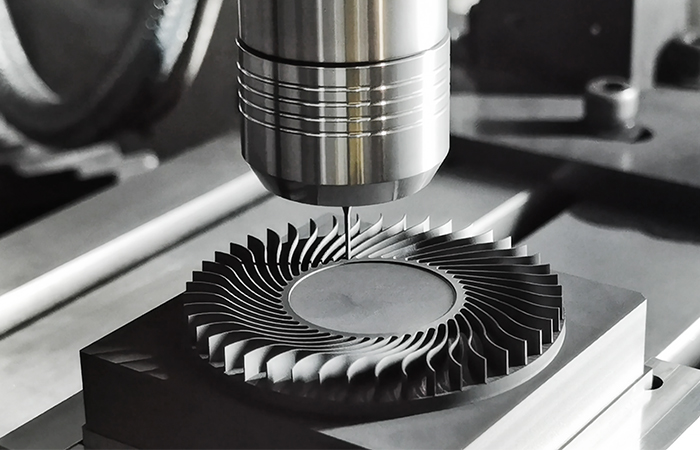

Cooling Fan Graphite Electrode

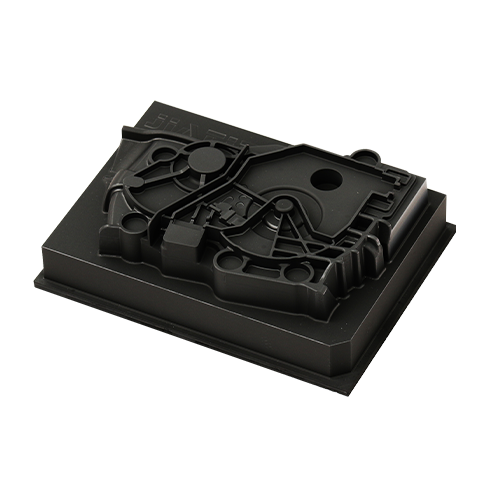

Automotive Component Graphite Mold

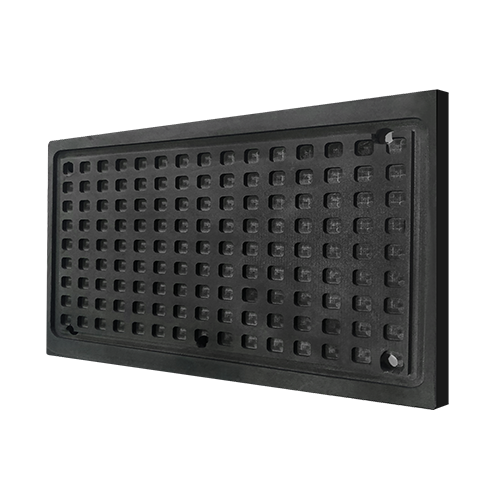

Dense Hole Graphite Testing Part

Semi-Conductor Graphite Accessories

Specifications

Items	Technical Parameter
X/Y/Z travel	500/400/250mm
Work table dimension	600 x 400mm
Max workpiece size	500×400×420mm
Max load of worktable	300kg
Machine net dimension	2100×2050×2500mm
Machine net weight	5500kg
Click for details in PDF	Specification Download

1741759238238377.pdf

Other Similar Machines

JTGS-600 Graphite Machining Center

High-speed, high-precision graphite processing CNC machine

High-end graphite electrode and parts processing

Graphite materials, ceramic green embryos, calcium silicate

View details

JTGK-700i Graphite Machining Center

High-speed, high-precision graphite processing CNC machine

High-end graphite electrode and parts processing

Graphite materials, ceramic green embryos, calcium silicate

View details

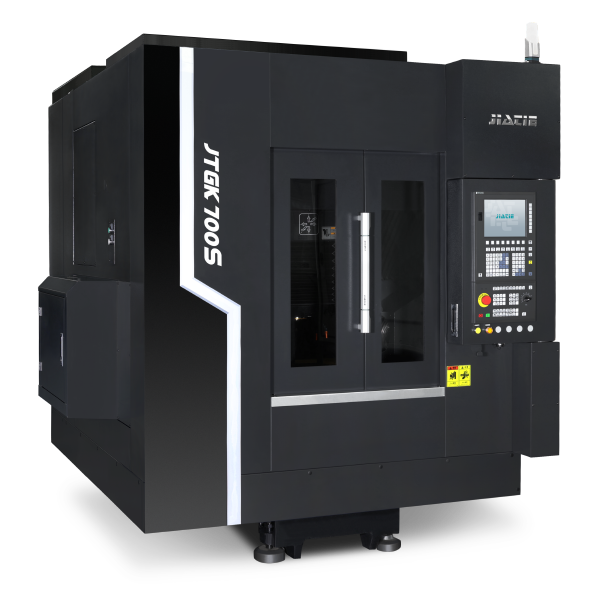

JTGK-700S Graphite Machining Center
