Micron-level precision machining, ultra-precision machining capability
Processing of precision molds and semiconductor components
High-hardness copper, quenched steel, high-speed die steel, new hard and brittle materials, etc

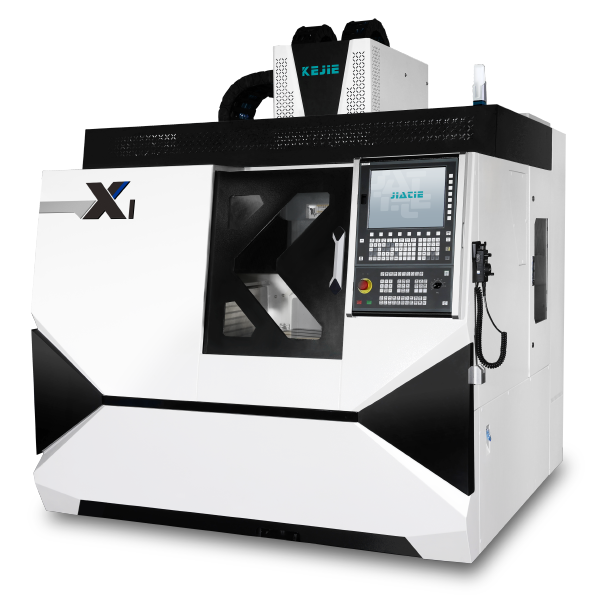

Adopts an integrated monolithic design and a new high-rigidity structure, equipped with proven vibration suppression technology and long-term stable temperature control technology, achieving dynamic response accuracy up to 0.1 micron.

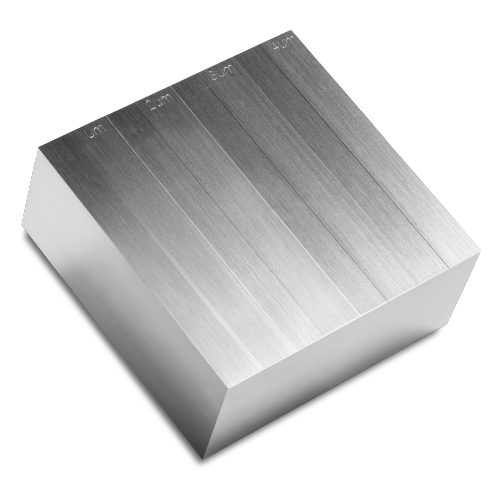

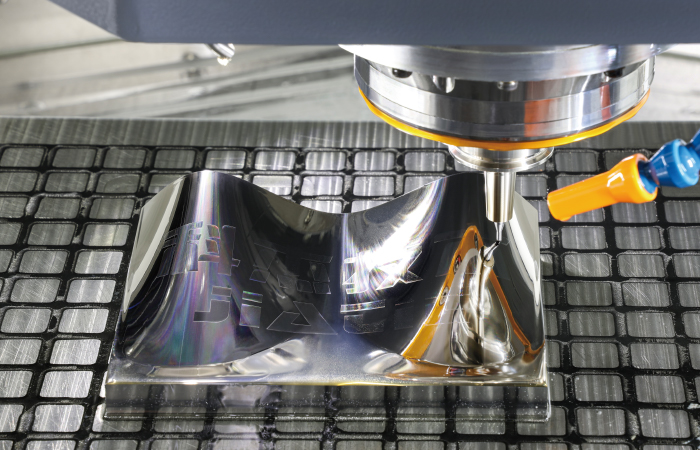

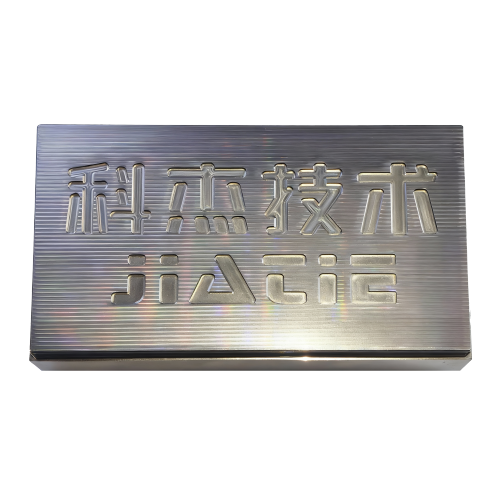

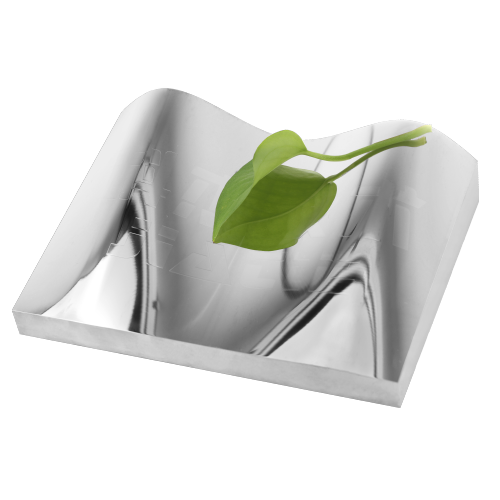

Long-term precision stability control enables continuous and stable machining over extended periods, while still maintaining excellent mirror-like surface finish and clear depth differentiation of characters, delivering outstanding precision performance.
Robust machine monolithic structure design, precise spindle temperature control, and temperature control technology maintaining overall machine temperature difference within 0.5°C.
Equipped with the self-developed JT-810 CNC system featuring AI multi-modal control, the equipment performs reliably and stably in the field of ultra-precision machining.
Lightweight moving components enhance motion speed.

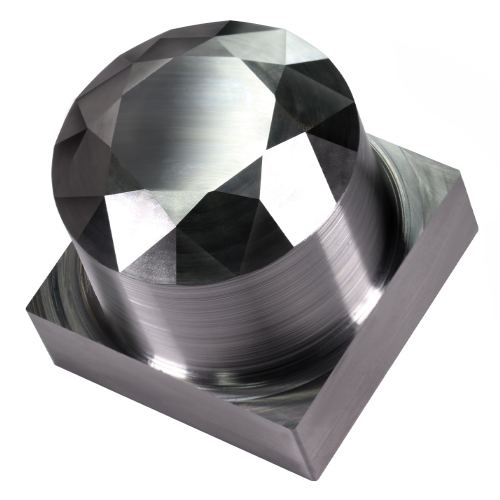

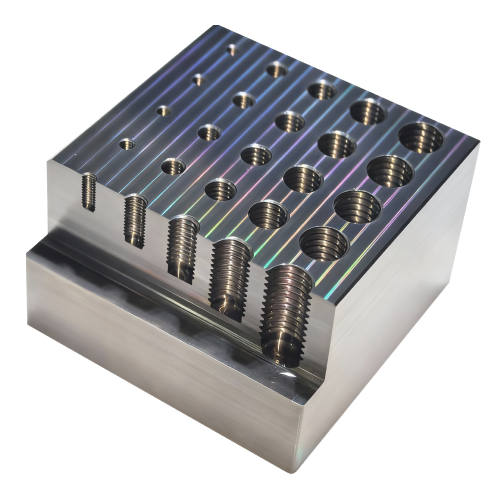

Ideally suited for high-precision machining applications such as micro-features, small-diameter hole milling, 2D/3D precision milling, as well as sharp-angle surfaces and diamond-like surfaces.
| Items | Technical Parameter |
| X/Y/Z travel | 500/400/250mm |
| Max workpiece height | 550x410x260mm |
| Max load of worktable | 200kg |
| Machine net dimension | 2050×2000×2350mm |
| Machine net weight | 6000kg |
| Click for details in PDF | Specification Download |
