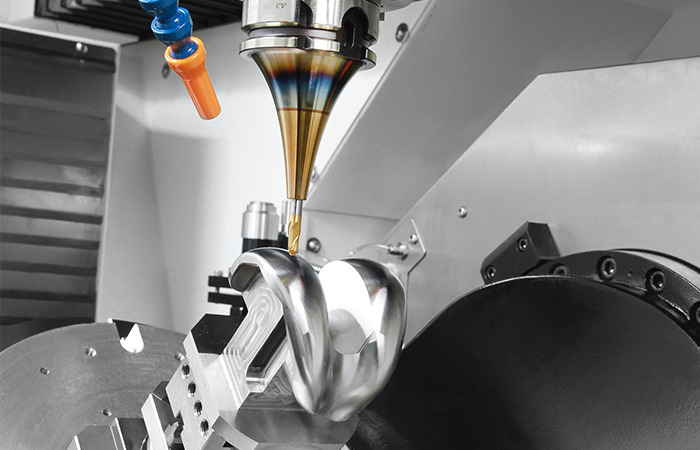

1. What Is Five Axis Machining?
Five axis machining is an advanced CNC manufacturing process in which a machine tool operates along five different axes simultaneously. In addition to the three standard linear axes (X, Y, and Z), two rotational axes are added, allowing the cutting tool to approach the workpiece from almost any direction.
Compared with traditional 3-axis or 4-axis machining, 5 Axis Machining significantly improves machining accuracy, surface quality, and production efficiency. It is widely used in aerospace, automotive manufacturing, precision molds, medical devices, and energy equipment, and has become a key indicator of high-end manufacturing capability.
2. What Are the 5 Axes of Machining?
To fully understand what are the 5 axis of machining, it is important to first understand the CNC coordinate system.
2.1 The Three Linear Axes (X / Y / Z)
X-axis: Left–right movement
Y-axis: Front–back movement
Z-axis: Up–down movement
These three axes form the foundation of all CNC machines and are essential for any 5 axis CNC mill.
2.2 The Two Rotational Axes (A / B / C)
A-axis: Rotation around the X-axis
B-axis: Rotation around the Y-axis
C-axis: Rotation around the Z-axis=
Different machine configurations use different combinations of rotational axes, such as A+C or B+C. The addition of these two rotary axes enables true five axis machining, making it possible to machine complex 3D surfaces in a single setup.
3. Advantages of Five Axis Machining Over Conventional Methods
Compared with traditional machining, 5 axis machining offers several key advantages:
Multiple surfaces machined in one setup
Reduces repositioning errors and improves dimensional consistency.
Higher machining accuracy
The tool always maintains the optimal cutting angle.
Superior capability for complex geometries
Ideal for impellers, turbine blades, and aerospace structural parts.
Shorter machining cycles and higher efficiency
Lower labor involvement and reduced overall manufacturing cost.
For these reasons, many manufacturers focus on finding the best 5 axis CNC machine for their production needs.
4. Main Types of Five Axis CNC Machines
4.1 Five Axis CNC Milling Machines
The 5 axis CNC milling machine is the most widely used type, especially in mold making, precision components, and complex structural parts. It is also the core product category for most 5 axis CNC machine manufacturers.
4.2 Five Axis Gantry Mill
A 5 axis gantry mill features a gantry-style structure that provides:
High rigidity
Large machining travel
Strong load capacity
It is commonly used for aerospace components, large molds, and heavy-duty industrial parts.
4.3 Five Axis Laser Cutting Machine
A 5 axis laser cutting machine uses five-axis linkage to perform laser cutting or drilling on complex 3D surfaces. It is widely applied in automotive body panels, sheet metal parts, and irregular tube processing.
5. JTMA-300 5-Axis High Speed Machine Overview
Among advanced five axis solutions, the JTMA-300 5-Axis High Speed Machine represents a new generation of high-precision and high-efficiency machining equipment.
5.1 Key Technical Advantages
Fully closed loop control technology makes machine machining more accurate and reliable
Ensures high positioning accuracy and excellent repeatability.
High-efficiency and high-accuracy machining
Designed for stable, high-speed, and precision five axis machining.
Excellent human-machine interaction design ensures the operational comfort and convenience for operator
Improves usability and overall production efficiency.
Gantry structure makes machine dynamic property and precision retention better
Enhances rigidity, dynamic response, and long-term accuracy.
Equipped with DD direct drive 5-axis rotary tables
Provides fast response, high torque, and precise positioning.
The moving components are completely isolated from the machining area
Makes cleaning and maintenance easier while protecting key components.
A large torque or high-speed spindle is optional
Allows customization for different industry machining requirements.
6. JTMA-300 Technical Specifications
X / Y / Z travel: 600 / 350 / 300 mm
Max workpiece diameter: Φ350 mm
Max workpiece height: 270 mm
Max load of worktable: 100 kg
Machine net dimensions:
1990 × 2250 × 2550 mm (Circular type tool magazine)
2300 × 2250 × 2550 mm (Chain type tool magazine)
Machine net weight: 7000 kg
These specifications make the JTMA-300 highly competitive for high-precision, small- to medium-sized complex part machining.
7. How to Choose the Best 5 Axis CNC Machine
When selecting the best 5 axis CNC machine, manufacturers should consider:
Machine structure and rigidity
Five-axis rotary table performance
CNC control system capability
Spindle options and cutting requirements
Technical strength and after-sales service of 5 axis CNC machine manufacturers
The best solution is not a single model, but the machine that best matches specific production needs.
8. Applications of Five Axis Machining
Five axis machining is widely applied in industries such as:
Aerospace components
Automotive molds and engine parts
Medical implants and instruments
Precision mold manufacturing
Energy and high-end mechanical equipment
In many of these industries, five axis machining is not optional but essential.
9. Conclusion
In summary, what are the 5 axis of machining is more than a technical definition—it represents a major advancement in modern manufacturing. From the 5 axis CNC mill and 5 axis gantry mill to the 5 axis laser cutting machine, five axis technology continues to push the boundaries of precision, efficiency, and complexity.
Advanced equipment such as the JTMA-300 5-Axis High Speed Machine demonstrates how modern 5 axis CNC milling machine solutions can deliver outstanding performance and reliability, helping manufacturers stay competitive in today’s high-end manufacturing environment.
