In today’s competitive manufacturing environment, precision, speed, and efficiency are critical. Manufacturers are constantly seeking ways to produce high-quality components faster and with minimal errors. One technology that has revolutionized modern production is the CNC High Speed Machine. These machines combine computer-controlled precision with high-speed operation, enabling manufacturers to achieve superior results in less time. Among these machines, the JTGK-600G Pro CNC High Speed Machine stands out as a high-performance solution for a wide range of industries, offering advanced features and robust construction that set it apart from conventional CNC systems.
Understanding CNC High Speed Machines
A CNC high speed machine is a computer numerical control system designed for rapid, high-precision machining. Unlike traditional CNC machines, which often prioritize heavy-duty cutting and slower feed rates, high-speed CNC centers focus on maximizing spindle speed, rapid tool movement, and precision control. This makes them ideal for producing intricate components, fine details, and complex geometries in materials such as aluminum, plastics, composites, and specialty alloys.
The high speed CNC center concept emphasizes the combination of Automation, speed, and accuracy. By controlling all movements of the cutting tool and workpiece via advanced software, the machine reduces human error, enhances repeatability, and allows for consistent production quality, even under demanding conditions.

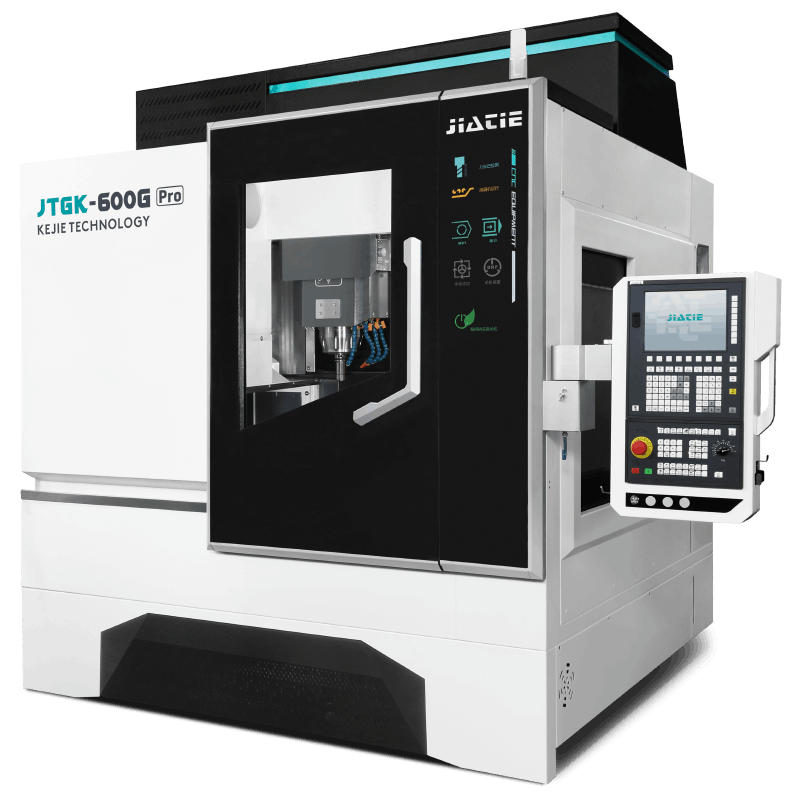

The JTGK-600G Pro CNC High Speed Machine exemplifies these capabilities. It integrates a new generation CNC control system with temperature control technology, ensuring that machining accuracy remains stable over long periods of operation. This machine is specifically designed to handle high-speed milling, engraving, and precision cutting tasks with reliability and efficiency.
Key Features of the JTGK-600G Pro CNC High Speed Machine
1. New Generation CNC Control System
The backbone of any CNC high speed machine is its control system. The JTGK-600G Pro features a new generation CNC control system that allows operators to program complex toolpaths, manage multi-axis movements, and monitor machine performance in real time. This advanced system ensures that every movement is executed with precision, reducing errors and improving overall production efficiency.
2. Temperature Control Technology
Thermal stability is critical for maintaining accuracy in high-speed machining. The JTGK-600G Pro incorporates temperature control technology, which minimizes the impact of heat generated by high-speed spindle operation and environmental conditions. By stabilizing the machine’s temperature, this technology ensures that the high speed CNC center maintains consistent tolerances, even during prolonged production cycles.
3. Enhanced Structural Design
The machine features a new structure design that improves rigidity, stability, and reliability. High-speed operations generate significant dynamic forces, and a robust machine frame ensures minimal vibration and deflection. This structural optimization allows the JTGK-600G Pro to maintain high precision during rapid tool movements, making it suitable for both delicate and complex machining tasks.
4. Generous Work Envelope
With X/Y/Z travel of 600/500/320mm, a work table dimension of 680×500mm, and a maximum workpiece height of 380mm, the JTGK-600G Pro can accommodate a wide variety of parts. The maximum load of the worktable is 300kg, allowing manufacturers to process medium-sized components efficiently without sacrificing accuracy or speed.
5. Compact and Robust Physical Specifications
Despite its capabilities, the machine maintains a relatively compact footprint, with net dimensions of 2760×2200×2530mm and a net weight of 7000kg. This balance of size and mass ensures stability during high-speed operations while optimizing floor space in workshops and production facilities.
How CNC High Speed Machines Work
The operation of a CNC high speed machine like the JTGK-600G Pro combines mechanical precision with digital control. Here’s a breakdown of the process:
Programming and Toolpath Generation
The operator creates a digital model of the part using CAD/CAM software. The software generates a toolpath, which dictates the movement of the spindle, tool, and workpiece.
Machine Initialization
The operator sets up the workpiece on the machine’s worktable and selects the appropriate cutting tools. The JTGK-600G Pro’s control system ensures correct tool alignment and checks for potential collisions.
High-Speed Machining
During machining, the high speed CNC center moves the spindle along the X, Y, and Z axes at rapid feed rates. The high-speed spindle rotation combined with the machine’s rigid structure allows precise material removal while maintaining surface finish quality.
Temperature Compensation
As the machine operates, temperature control technology compensates for thermal expansion in both the spindle and frame. This ensures that precision is maintained even during extended production runs.
Automated Monitoring
Modern high-speed CNC machines continuously monitor spindle load, vibration, and tool wear. The JTGK-600G Pro alerts operators to potential issues, minimizing downtime and maintaining production efficiency.
Advantages of High Speed CNC Machining
Increased Production Efficiency
High-speed operations reduce cycle times, allowing manufacturers to produce more parts in less time compared to traditional CNC machines.
Superior Surface Finish
The combination of rapid spindle rotation and precise tool movement results in smoother surfaces and reduced post-processing requirements.
Enhanced Accuracy and Repeatability
Advanced CNC control systems and temperature stabilization ensure consistent part dimensions, even over long production runs.
Versatility
The JTGK-600G Pro supports a wide range of applications, including milling, engraving, and precision cutting, making it suitable for industries such as aerospace, automotive, electronics, and mold-making.
Reduced Tool Wear
The optimized motion control and structural rigidity minimize stress on cutting tools, extending their service life and reducing operating costs.
Applications of the JTGK-600G Pro CNC High Speed Machine
The high speed CNC center is versatile and can handle various industrial applications:
Aerospace Components – Machining aluminum, titanium, and composite parts with high precision.
Automotive Industry – Producing molds, dies, and complex engine components quickly.
Electronics Manufacturing – Engraving PCBs and precision housings with minimal surface defects.
Medical Equipment – Manufacturing surgical instruments and implants with tight tolerances.
Mold and Tool Making – Creating detailed molds and dies efficiently with minimal manual intervention.
Key Specifications at a Glance
Specification | JTGS-600G Pro CNC High Speed Machine |
X/Y/Z Travel | 600/500/320 mm |
Work Table Dimension | 680×500 mm |
Max Workpiece Height | 380 mm |
Max Load of Worktable | 300 kg |
Machine Net Dimension | 2760×2200×2530 mm |
Machine Net Weight | 7000 kg |
Key Features | New generation CNC system, Temperature control technology, High rigidity structure |
These specifications demonstrate that the JTGK-600G Pro is capable of handling high-speed, high-precision operations across a wide variety of workpieces and industries.
Conclusion
A CNC high speed machine represents a leap forward in modern manufacturing, combining the precision of computer-controlled machining with the efficiency of high-speed operations. The JTGK-600G Pro CNC High Speed Machine is a prime example, integrating a new generation CNC control system, temperature control technology, and a rigid structural design to deliver consistent, high-quality results.
As a high speed CNC center, it provides manufacturers with enhanced production efficiency, superior surface finish, and the ability to handle complex geometries with minimal downtime. For industries that demand speed, precision, and reliability, the JTGK-600G Pro is an indispensable tool, offering both performance and versatility that traditional CNC machines cannot match.
By investing in a high speed CNC like the JTGK-600G Pro, manufacturers can stay ahead in competitive markets, delivering superior products faster and more efficiently than ever before.
