1. Material-Specific Design
Traditional CNC Machining Centers are optimized for metals, plastics, or composite materials. While they can technically process graphite, they often struggle with heat generation, tool wear, and vibration during high-speed cutting. Graphite is brittle and produces fine dust during machining, which requires machines to have unique damping systems and high-speed spindles.
The JTGS-600 Graphite Machining Center features a box-type structure design and unique damping characteristics, which provide excellent dynamic machining performance. This design absorbs vibrations effectively, ensuring smooth cutting, precise edges, and superior surface quality in graphite workpieces. This material-specific optimization is a major advantage over traditional CNC machines.
2. High-Speed Graphite Cutting Capabilities
One of the most significant distinctions between graphite engraving and milling machines and traditional CNC machines is their ability to perform high-speed cutting. Graphite machining demands rapid feed rates and high spindle speeds to prevent excessive heat buildup and material chipping.
The JTGS-600 supports fast feed cutting of graphite, allowing manufacturers to achieve high productivity without compromising quality. Traditional CNC machines, designed for slower metal-cutting operations, may struggle to maintain accuracy at these speeds, leading to surface defects or dimensional inconsistencies.
3. Enhanced Dynamic Performance
Graphite machining requires machines that can maintain stability at high speeds. The JTGS-600 Graphite Machining Center employs a box-type Z-axis structure, which improves dynamic performance during vertical cutting. Coupled with a robust axis movement system that adopts special protective measures to increase the life of moving parts, this structure ensures long-term reliability, reduced maintenance costs, and consistent machining accuracy.
In contrast, many traditional CNC Machining Centers are not optimized for the unique stresses associated with high-speed graphite cutting. Without enhanced damping and structural reinforcement, vibrations can degrade precision, leading to defects or shortened tool life.
4. Multi-Function Flexibility
While traditional CNC machines are generally versatile for metal and plastic machining, graphite machining centers like the JTGS-600 provide optional multi-function configurations tailored to graphite processing needs.
The JTGS-600 is a true graphite engraving and milling center, capable of handling complex engraving, milling, and even electrode shaping tasks in one setup. This multi-functionality reduces setup time, increases throughput, and ensures consistent quality across diverse graphite applications. In comparison, traditional CNC machines may require additional fixtures, tooling, or separate setups, reducing overall efficiency.
5. Automation Compatibility
Modern manufacturing increasingly relies on automation for efficiency. The JTGS-600 Graphite Machining Center is designed to integrate seamlessly with automated systems, further enhancing productivity. High-speed machining, combined with automated loading and unloading, reduces labor requirements and allows for continuous operation, something that traditional CNC machines often cannot achieve when processing graphite.
Technical Advantages of the JTGS-600 Graphite Machining Center
Let’s take a closer look at the technical specifications of the JTGS-600 and how they contribute to its superiority over traditional CNC machines:
X/Y/Z travel: 600/500/300mm
Work table dimension: 630×500mm
Max workpiece height: 460mm
Max load of worktable: 300kg
Machine net dimension: 2290×2180×2620mm
Machine net weight: 6500kg
These specifications enable the JTGS-600 to handle medium to large graphite workpieces with stability and precision. The generous workspace, combined with a high-load table, allows for versatile processing, making it suitable for EDM electrode production, molds, and complex graphite components.
Additionally, the machine’s high moving speed and robust design ensure that even under heavy cutting conditions, the JTGS-600 maintains precision and prevents tool wear, which is crucial for maintaining cost-efficiency in production.
Applications Across Industries
The JTGS-600 Graphite Machining Center finds applications in multiple high-tech industries where graphite components are critical:
EDM Electrode Manufacturing

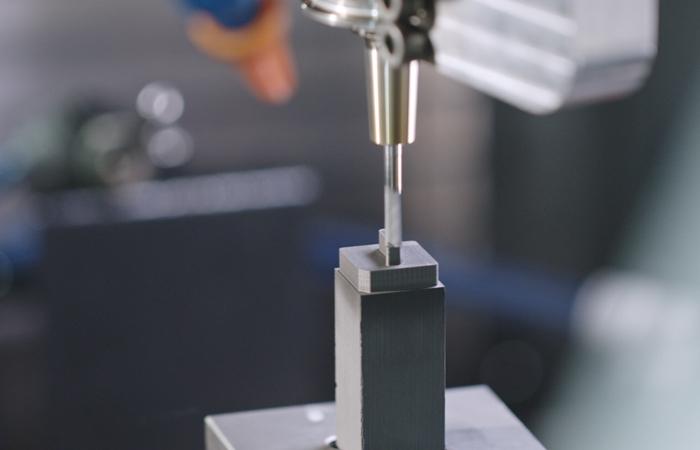

Graphite electrodes are essential for electrical discharge machining. The JTGS-600’s precision and high-speed capabilities enable manufacturers to produce intricate electrodes efficiently.
Aerospace Components
High-precision graphite molds and parts used in aerospace benefit from the machine’s damping system and dynamic stability.
Automotive Industry
Graphite components such as molds, dies, and electrodes for precision parts require fast, accurate machining. The JTGS-600 excels in producing these components consistently.
Tooling and Prototyping
As a graphite engraving and milling equipment, the JTGS-600 allows for precise patterning, engraving, and milling, suitable for rapid prototyping and specialized tooling applications.
Advantages Over Traditional CNC Machining Centers
Precision in Graphite – Specialized damping and high-speed spindle ensure higher accuracy than standard CNC machines when machining graphite.
Speed and Efficiency – Capable of fast feed rates, reducing machining time significantly.
Multi-Function Capability – Handles engraving, milling, and electrode shaping in one setup.
Reduced Maintenance – Protective axis measures extend the life of moving parts, minimizing downtime.
Automation-Friendly – Can integrate with robotic loading/unloading systems, enhancing productivity.
Conclusion
While traditional CNC machining centers are versatile tools for metal and plastic processing, they often fall short when it comes to specialized graphite machining. The JTGS-600 Graphite Machining Center addresses these limitations with advanced graphite engraving and milling equipment, a robust box-type structure, high-speed capabilities, and multi-function flexibility.
As a graphite engraving and milling center and graphite engraving and milling machine, the JTGS-600 offers manufacturers precision, efficiency, and reliability unmatched by conventional CNC machines. Its technical specifications, high-speed performance, and automation compatibility make it an indispensable tool for industries requiring high-quality graphite components, from EDM electrodes to aerospace and automotive molds.
In conclusion, for manufacturers seeking to enhance graphite processing capabilities, the JTGS-600 provides a clear technological advantage over traditional CNC machining centers, combining speed, precision, and operational efficiency in one high-performance machine.
