In modern manufacturing, precision, efficiency, and Automation are critical to staying competitive. One of the most versatile and essential machines in the industrial landscape is the CNC drilling machine. These machines have transformed the way manufacturers handle complex drilling tasks, offering unparalleled accuracy, speed, and repeatability. Among the latest innovations in this field, the JTDM-540+ CNC Drilling and Milling Machine represents a cutting-edge solution that combines drilling and milling capabilities, advanced control systems, and high-speed processing features.
Understanding CNC Drilling Machines
A CNC (Computer Numerical Control) drilling machine is an automated tool used to drill precise holes into a variety of materials, including metals, plastics, and composites. Unlike traditional manual drilling methods, CNC drilling machines utilize computer programming to control the movement of the drill head along multiple axes, ensuring high accuracy and repeatability.
Key Functions
Precision Drilling – The CNC system ensures that holes are drilled at exact locations, with precise diameters and depths.
Automation – The process is fully automated, reducing human error and labor costs.
Versatility – Modern machines often integrate milling functions, allowing for complex operations such as slotting, contouring, and tapping.
Batch Production – CNC drilling machines are ideal for large-scale production due to their consistent performance and high-speed capabilities.
Introduction to the JTDM-540+ CNC Drilling and Milling Machine

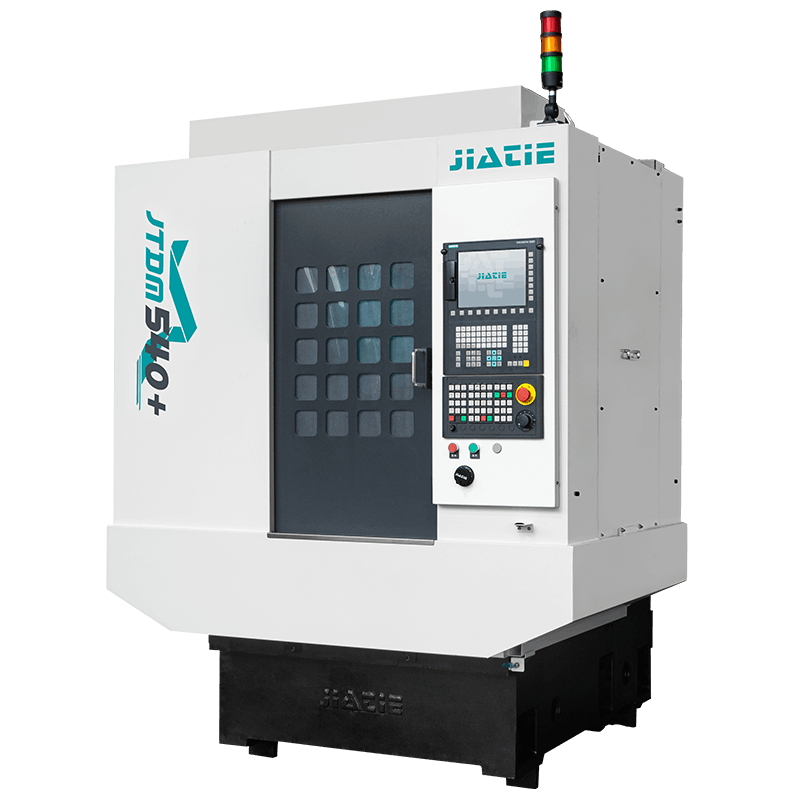

The JTDM-540+ is a state-of-the-art cnc drilling and milling machine designed for both small workshops and large-scale manufacturing environments. It integrates high-speed processing, precise positioning, and advanced control systems to deliver reliable results.
Features and Advantages
High-Speed Tool Change System
Equipped with a high-speed tool change system, the JTDM-540+ allows operators to quickly switch between drilling, milling, and tapping tools. This reduces idle time and significantly improves productivity in batch processing.
Accurate and Reliable Positioning
The machine ensures precise alignment of the spindle and workpiece, guaranteeing consistent hole placement and milling accuracy. Accurate positioning is essential for complex parts where multiple holes or features must align perfectly.
Advanced CNC System
Powered by a famous brand CNC system, the JTDM-540+ provides smooth motion control, efficient program execution, and compatibility with standard CAM software. Operators can program complex drilling and milling operations, including threading with a Fanuc tapping center module.
Human-Machine Interaction
The user-friendly interface allows operators to monitor machining processes, adjust parameters, and execute commands easily. This excellent human-computer interaction simplifies training and improves operational efficiency.
High-Speed and High-Efficiency Processing
With fast moving speeds along the X, Y, and Z axes, the JTDM-540+ minimizes non-cutting time and enhances throughput, making it suitable for batch production and repetitive tasks.
Versatile Work Envelope
X/Y/Z Travel: 500/400/320 mm (standard high column), 500/400/370 mm (higher column)
Work Table Dimension: 620×400 mm
Max Workpiece Height: 480 mm (standard high column), 630 mm (higher column)
Max Load of Worktable: 250 kg
These specifications make the machine adaptable for a wide range of workpieces and applications, from medium-sized parts to taller components requiring additional clearance.
How CNC Drilling Machines Work
CNC drilling machines operate by following pre-programmed instructions to move the spindle and drill along specific coordinates. The process involves several key steps:
Programming
Operators use CAD/CAM software to design the part and define drilling and milling operations. The program specifies hole locations, diameters, depths, feed rates, and spindle speeds.
Setup
The workpiece is securely mounted on the worktable. For the JTDM-540+, the table can support up to 250 kg, accommodating medium-sized and heavy components.
Tool Selection
The machine uses the high-speed tool change system to automatically select and position the correct tool. This ensures minimal downtime between operations.
Machining
The CNC system controls the spindle and axes to drill holes or mill features according to the program. The machine maintains consistent feed rates and spindle speeds, optimizing cutting performance.
Tapping and Multi-Function Operations
Using a Fanuc tapping center module, threaded holes can be added in the same setup. This eliminates additional operations and reduces handling errors.
Quality Verification
After machining, measurements are taken to ensure all features meet specified tolerances. Modern CNC systems allow real-time monitoring to detect deviations immediately.
Applications of CNC Drilling and Milling Machines
The versatility of a cnc drilling milling machine like the JTDM-540+ enables its use across multiple industries:
Automotive Industry
Machining engine components, transmission parts, and brackets with high precision.
Aerospace
Drilling and milling lightweight yet complex components for aircraft and spacecraft.
Medical Devices
Producing surgical instruments, implants, and medical equipment parts with tight tolerances.
Electronics
Drilling PCB mounting holes, enclosures, and precision connectors.
General Manufacturing
Creating molds, dies, and other precision components for mass production.
Advantages of Using the JTDM-540+
Reduced Idle Time – High-speed movement and tool change system minimize non-productive periods.
Batch Processing Efficiency – Capable of handling multiple parts quickly and accurately.
Multi-Functionality – Drill, mill, and tap components in a single setup.
High Accuracy and Repeatability – Ensures consistent quality, reducing waste and rework.
User-Friendly Operation – The intuitive interface simplifies programming and operation.
Factors to Consider When Selecting a CNC Drilling and Milling Machine
When choosing the right cnc drilling and milling machine for your workshop, consider the following:
Workpiece Size and Weight – Ensure the table and travel dimensions meet your production needs.
Tooling Capabilities – Machines with high-speed tool change systems can significantly improve workflow.
CNC System Quality – Reliable and well-known CNC systems like Fanuc enhance precision and longevity.
Maintenance and Durability – Machines with sealed and robust components reduce downtime.
Operator Comfort and Usability – Ergonomic interfaces improve productivity and reduce training time.
The JTDM-540+ excels in all these areas, making it a versatile choice for modern workshops.
Conclusion
A CNC drilling machine is a cornerstone of precision manufacturing, providing automation, speed, and repeatability that manual processes cannot match. The JTDM-540+ CNC Drilling and Milling Machine represents a new generation of versatile, efficient, and high-precision equipment.
With its high-speed tool change system, accurate positioning, advanced CNC system, and user-friendly interface, the JTDM-540+ offers manufacturers a reliable solution for drilling, milling, and tapping operations. Whether for batch production, complex geometries, or high-precision components, this machine ensures consistent quality, reduced setup time, and enhanced productivity.
For workshops seeking a cost-effective, multi-functional, and high-performance cnc drilling and milling machine, the JTDM-540+ is undoubtedly a top choice.
