In the rapidly evolving world of manufacturing, efficiency, precision, and versatility have become critical factors for competitiveness. Machines that can deliver all three are highly sought after. Among these, the CNC Drilling and Milling Machine has emerged as an essential tool in modern factories. Combining the capabilities of both drilling and milling in a single platform, it allows manufacturers to achieve high-quality results, reduce setup time, and increase productivity.

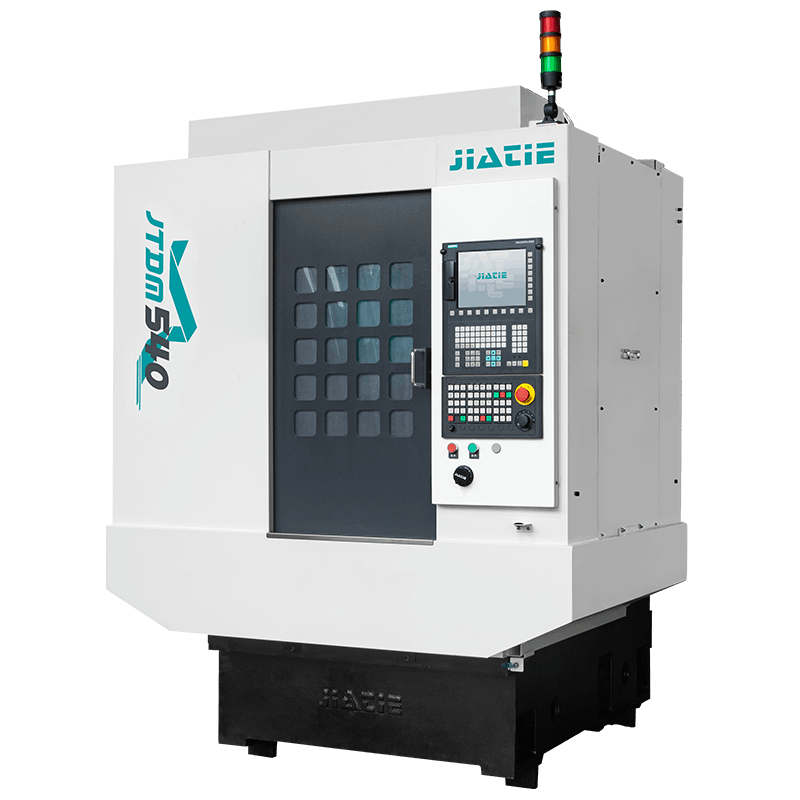

One of the outstanding machines in this category is the JTDM-540 CNC Drilling and Milling Machine. Engineered to meet the demanding needs of modern production, it integrates advanced control systems, a high-speed tool change system, and precise positioning technology.
1. Understanding CNC Drilling and Milling Machines
A CNC drilling and milling machine is a computer-controlled machine tool designed to perform drilling and milling operations with high precision. Unlike traditional manual machines, CNC systems can execute complex tool paths automatically, reducing human error and ensuring repeatability.
Drilling involves creating precise holes of various diameters and depths.
Milling involves shaping, cutting, and contouring material surfaces.
By integrating both operations, a cnc drilling milling machine eliminates the need to transfer a workpiece between separate machines, saving time and reducing the potential for misalignment.
The CNC system controls the spindle, tool movement, and feed rate along multiple axes, typically X, Y, and Z, enabling three-dimensional machining of intricate components.
2. JTDM-540 CNC Drilling and Milling Machine Overview
The JTDM-540 CNC Drilling and Milling Machine is designed for high efficiency, precision, and ease of use. It is suitable for both small-scale and batch production, offering a versatile solution for manufacturers across various industries.
Key Features of the JTDM-540
High-speed tool change system: Quickly switches tools to minimize downtime and streamline multi-step operations.
High-speed operation: Reduces idle time and improves production efficiency.
Efficient batch processing: Capable of handling multiple components quickly and accurately.
Human-computer interaction interface: User-friendly operation makes it accessible even for less experienced operators.
Accurate and reliable positioning: Ensures consistent processing quality across all parts.
Advanced CNC system: Equipped with a famous brand CNC controller that is powerful, reliable, and capable of handling complex machining programs.
Specifications
X/Y/Z Travel: 500 / 400 / 320 mm (standard high column), 500 / 400 / 370 mm (higher column
Work Table Dimension: 620 × 400 mm
Max Workpiece Height: 480 mm (standard), 630 mm (higher column)
Max Load of Worktable: 250 kg
Machine Net Dimension: 1620 × 2080 × 2460 mm (standard), 1620 × 2080 × 2610 mm (higher column)
Machine Net Weight: 2700 kg
These features make the JTDM-540 ideal for various drilling and milling tasks, ranging from prototype production to medium-scale batch processing.
3. How Does a CNC Drilling and Milling Machine Work?
Operating a cnc drilling machine or cnc drilling and milling machine involves the coordinated function of several components:
a. CNC Control System
At the heart of the JTDM-540 is an advanced CNC system, which controls spindle speed, tool movement, and feed rates. The system can interpret CAD/CAM programs, allowing operators to create complex tool paths for intricate designs. This Automation ensures precision and repeatability, reducing the potential for human error.
b. High-Speed Tool Change
The JTDM-540’s high-speed tool change system enables quick swapping of drills, end mills, and other cutting tools. This feature is particularly valuable for operations requiring multiple tools in sequence, as it reduces setup time and increases machine uptime.
c. Precision Axis Movement
The machine’s X, Y, and Z axes provide accurate movement, ensuring that holes, cuts, and contours are machined exactly as programmed. The accurate and reliable positioning guarantees consistent processing quality, even in complex multi-step operations.
d. Worktable and Workpiece Handling
The 620 × 400 mm worktable provides a stable platform for securing workpieces up to 250 kg. The machine can accommodate workpieces with heights up to 630 mm in the higher column version, offering flexibility for a wide range of applications.
e. Human-Computer Interaction Interface
The user-friendly interface allows operators to set up machining jobs quickly, monitor performance, and adjust parameters as needed. This reduces the learning curve and enhances operational efficiency.
4. Benefits of the JTDM-540 CNC Drilling and Milling Machine
1. High-Speed Machining
The JTDM-540 is designed for high-speed CNC operations, significantly reducing cycle times. Its rapid axis movements and high spindle speeds make it ideal for batch production, where multiple identical parts must be manufactured quickly.
2. Efficient Batch Processing
With its robust structure and powerful CNC system, the JTDM-540 can handle high-volume processing without sacrificing quality. The high-speed tool change system ensures seamless transitions between different tools, optimizing workflow efficiency.
3. Precision and Reliability
Equipped with a famous brand CNC system and accurate positioning technology, the JTDM-540 ensures high-quality output. Parts are consistently machined to exact specifications, reducing scrap rates and minimizing post-processing requirements.
4. User-Friendly Operation
The machine’s intuitive human-computer interface makes setup, monitoring, and operation straightforward. Operators can quickly program and adjust machining sequences, improving productivity and reducing training requirements.
5. Versatility
The JTDM-540 can perform both drilling and milling operations on a variety of materials, including metals, plastics, and composites. Its flexible X/Y/Z travel and adjustable column height make it suitable for both small components and larger workpieces.
6. Stability and Durability
The robust design and rigid frame reduce vibration during machining, ensuring smooth surfaces and extending the life of cutting tools. This reliability makes it a durable solution for long-term production needs.
5. Applications of CNC Drilling and Milling Machines
The versatility of the JTDM-540 CNC drilling and milling machine makes it valuable in various industries:
Automotive: Precision engine components, brackets, and molds.
Aerospace: Lightweight aluminum or composite components with tight tolerances.
Electronics: Drilling and milling precise holes in housings and enclosures.
Medical Devices: Manufacturing surgical instruments and implants.
Tooling and Mold Making: Efficient production of molds, dies, and jigs.
By combining drilling and milling operations, the JTDM-540 reduces the need for multiple machines, streamlining production workflows and saving floor space.
6. Maintenance and Operational Efficiency
The JTDM-540 is designed for ease of maintenance. Its components are easily accessible, and the high-speed tool change system reduces wear and tear associated with frequent tool swaps. Regular maintenance ensures consistent performance and extends the machine’s service life, making it a reliable asset for long-term production.
Conclusion
The JTDM-540 CNC Drilling and Milling Machine exemplifies the advantages of modern cnc drilling and milling machines:
High-speed operation to reduce idle time and increase productivity
Efficient batch processing capabilities
Precise and reliable positioning for consistent quality
User-friendly human-computer interaction interface
Advanced CNC system for complex, automated operations
High-speed tool change system for seamless multi-step machining
For manufacturers seeking a versatile, reliable, and high-performance cnc drilling milling machine, the JTDM-540 is a superior choice. It combines advanced technology, operational flexibility, and robust construction, making it an ideal solution for modern manufacturing challenges.
