1. What Is a Vertical Machining Center?
A Vertical Machining Center (VMC) is a CNC machine where the spindle is vertically oriented. The workpiece is positioned on a table below the spindle, allowing the tool to perform milling, drilling, tapping, and finishing operations from above. This orientation offers excellent gravity-assisted chip removal and superior accessibility for operators.
Key Advantages of Vertical CNC Machines
Precision machining: Ideal for complex geometries.
High-speed operation: Enables faster feed rates and reduced production time.
Compact design: Fits medium to large workshops efficiently.
Ease of use: Intuitive control systems simplify programming and operation.
The JTVC-855P3 Vertical Machining Center combines these advantages with innovative design features, making it suitable for batch production and high-precision tasks.

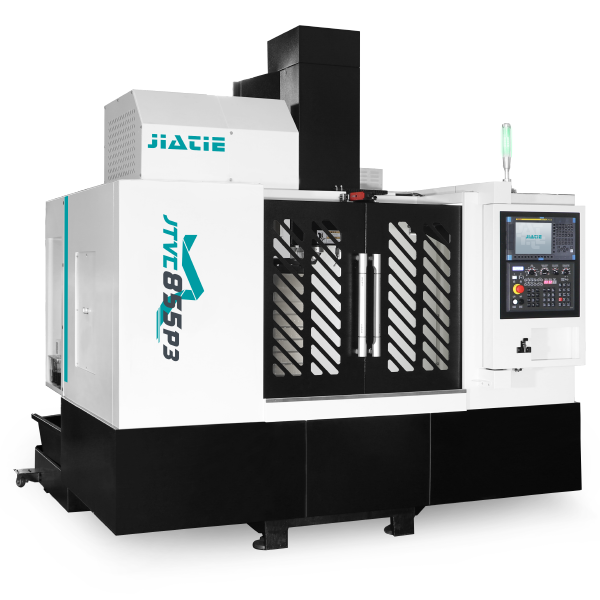

2. Introducing the JTVC-855P3 Vertical Machining Center
The JTVC-855P3 is engineered for efficiency and precision, incorporating years of machine design experience and finite element FEM analysis to create an exclusive structure design. This ensures the entire machine maintains excellent dynamic performance, even under high-speed and heavy-duty operations.
Technical Specifications
Parameter | JTVC-855P3 Specification |
X/Y/Z Travel | 800 / 500 / 550 mm |
Work Table Dimension | 1000 × 500 mm |
Max Workpiece Height | 500 mm |
Max Load of Worktable | 800 kg |
Tool Magazine | Arm type, 24 tools |
Tool Connector | BT40 high-rigidity |
Machine Net Dimension | 2580 × 2210 × 2750 mm |
Machine Net Weight | 4500 kg |
These specifications make the JTVC-855P3 a robust cnc vertical milling machine capable of handling medium-sized workpieces with high precision and stability.
3. Exclusive Structure Design and FEM Optimization
One of the standout features of the JTVC-855P3 is its exclusive structure design, validated through finite element FEM analysis. This ensures that the machine maintains dynamic stability during high-speed cutting and reduces vibrations that can affect surface finish and tool life.
Benefits
Enhanced machining accuracy.
Stable performance during aggressive milling or drilling.
Reduced wear on components due to vibration control.
This optimization makes the JTVC-855P3 a highly reliable vertical cnc machine for demanding industrial environments.
4. Linear Guide Design for Smooth and Accurate Motion
The JTVC-855P3 employs linear guide designs on all three axes (X, Y, Z), which deliver low friction, low noise, and superior flexibility. This ensures smooth movement and precise positioning even at higher feed rates.
Advantages of Linear Guides
Consistent high-accuracy machining.
Reduced mechanical wear over time.
Enhanced stability for complex cutting operations.
This linear guide system allows the JTVC-855P3 to maintain accurate machining during faster moving, increasing productivity without sacrificing quality.
5. Arm-Type Tool Magazine for Efficient Production
Efficient tool handling is crucial for modern production lines. The JTVC-855P3 is equipped with an arm-type tool magazine capable of holding 24 tools, ensuring:
Rapid, stable tool changes.
Continuous production without unnecessary interruptions.
Flexibility to handle multiple machining operations in a single setup.
This feature is especially valuable for batch production and multi-step processes, enhancing workflow efficiency.
6. BT40 High-Rigidity Tool Connector and Powerful Motor
The JTVC-855P3 uses a BT40 high-rigidity tool connector combined with a powerful spindle motor, providing superior cutting performance and stability.
Advantages
Precise machining with minimal tool deflection.
High material removal rates for faster operations.
Compatibility with a variety of cutting tools for milling, drilling, and tapping.
This combination ensures the JTVC-855P3 delivers excellent results on metals, alloys, and composite materials.
7. Chip Removal and Cutting Fluid Design
The JTVC-855P3 features two lateral slopes directing chips to the rear and a rear-side cutting fluid placement, creating a humanized and high-efficiency system for managing chips and cooling.
Benefits
Smooth evacuation of chips to maintain a clean workspace.
Improved cooling and lubrication during high-speed cutting.
Reduced operator intervention and maintenance.
This design enhances productivity and ensures a safer, cleaner working environment.
8. Human-Machine Interaction and Full Protection
The JTVC-855P3 emphasizes operator convenience with an excellent human-machine interface and fully sealed protection.
Advantages
Intuitive control system simplifies operation and programming.
Fully enclosed machine protects operators from chips and coolant.
Ergonomic design facilitates easy access to the work area.
These features minimize operator fatigue and maximize safety during extended production periods.
9. Applications of the JTVC-855P3 Vertical Machining Center
The JTVC-855P3 is highly versatile and finds applications across multiple industries:
Automotive: Engine components, transmission parts, and brackets.
Aerospace: Precision parts and turbine components.
Mold Making: Die cavities, mold plates, and toolings.
General Machinery: Metal plates, structural components, and machine parts.
Its combination of rigidity, precision, and speed makes it an ideal cnc vertical milling machine for both small and large batch productions.
10. Advantages Summary
The JTVC-855P3 offers an exceptional combination of design, technology, and usability:
Years of Machine Design Experience and FEM Analysis: Ensures reliability and optimal performance.
Linear Guide Design on Three Axes: Provides low friction, smooth movement, and high accuracy.
Arm-Type Tool Magazine (24 Tools): Efficient for batch operations and multi-tool processes.
BT40 High-Rigidity Tool Connector and Powerful Motor: Superior cutting stability.
Dual-Slope Chip Removal and Rear Cutting Fluid Placement: Humanized design for safety and efficiency.
Full Machine Enclosure and Human-Machine Interface: Safe, user-friendly operation.
These features make the JTVC-855P3 a top choice among vertical cnc machines and vertical machining centers.
11. Conclusion
The JTVC-855P3 Vertical Machining Center is a high-performance, versatile solution for modern manufacturing needs. Its exclusive structure design, linear guide system, high-speed spindle, and advanced tool management make it a reliable and efficient cnc vertical milling machine.
Whether for batch production, mold-making, or precision component manufacturing, the JTVC-855P3 delivers consistent quality, increased productivity, and improved operator safety. For manufacturers seeking a robust vertical cnc machine, the JTVC-855P3 represents a long-term investment in precision, efficiency, and reliability.
With its combination of speed, rigidity, and ergonomic design, the JTVC-855P3 ensures that workshops can meet the most demanding production requirements while maintaining superior machining accuracy.
