In today’s era of intelligent manufacturing, precision, efficiency, and Automation are the core demands of modern machining. Among the many CNC machining processes, CNC milling, CNC drilling, and CNC turning play vital roles in shaping the industrial world.
Each method has distinct operating principles, purposes, and machine configurations. However, with the advancement of technology, machines like the JTDM-540 CNC Drilling and Milling Machine have successfully combined the best features of both drilling and milling—offering manufacturers higher productivity and flexibility.
1. Overview of CNC Machining
CNC (Computer Numerical Control) machining is a process in which computer programs control machine tools to perform precise material removal operations. These machines follow programmed paths to produce parts with consistent accuracy and repeatability.
The three most common types are:
CNC Milling – shaping materials using a rotating cutting tool.
CNC Drilling – creating accurate holes using a vertical spindle and drill bit.
CNC Turning – forming cylindrical components by rotating the workpiece against a cutting tool.
Each process contributes uniquely to modern manufacturing. But when production demands both drilling and milling in one operation, a cnc drilling and milling machine like the JTDM-540 becomes the ideal choice.
2. What Is CNC Milling?
CNC milling involves removing material from a stationary workpiece using a rotating cutting tool that moves along multiple axes (X, Y, Z). The process can create complex shapes, slots, and surfaces.
Milling is best suited for applications requiring high precision and complex geometry, such as molds, housings, and custom metal parts. Multi-axis milling machines enable operations at various angles, offering exceptional flexibility.
Advantages of CNC Milling:
High accuracy and repeatability
Capability to create complex 3D shapes
Excellent surface finishes
Wide material compatibility (metals, plastics, composites)
However, when a component requires multiple holes or threading operations, switching between a milling machine and a cnc drilling machine can lead to downtime. This is where integrated machines like the JTDM-540 CNC Drilling and Milling Machine stand out.
3. What Is CNC Drilling?
CNC drilling is a process dedicated to creating round holes in metal, plastic, or composite materials using rotating drill bits. A cnc drilling machine typically performs hole-making, reaming, and tapping tasks.
The machine moves the drill bit vertically into the material at precise coordinates. This makes drilling indispensable in industries like aerospace, automotive, and electronics, where accurate hole positioning is crucial.
Advantages of CNC Drilling:
High-speed and accurate hole making
Automated control of depth and diameter
Consistent results with minimal human error
Ability to drill multiple holes in one setup
When both surface shaping and hole creation are needed, a cnc drilling milling machine like the JTDM-540 can complete all steps seamlessly without repositioning the part.
4. What Is CNC Turning?
CNC turning differs significantly from milling and drilling. In turning, the workpiece itself rotates while a stationary cutting tool removes material along its surface. This process is best for creating cylindrical or conical parts such as shafts, pins, and bushings.
A CNC turning center can perform facing, threading, and grooving operations efficiently.
Advantages of CNC Turning:
Excellent for round or tubular parts
High accuracy and surface smoothness
Suitable for high-volume production
Short cycle times for rotational components
Turning and milling complement each other in the production of complex assemblies—but drilling and milling often coexist within the same machining process. The JTDM-540 CNC Drilling and Milling Machine bridges these needs perfectly.

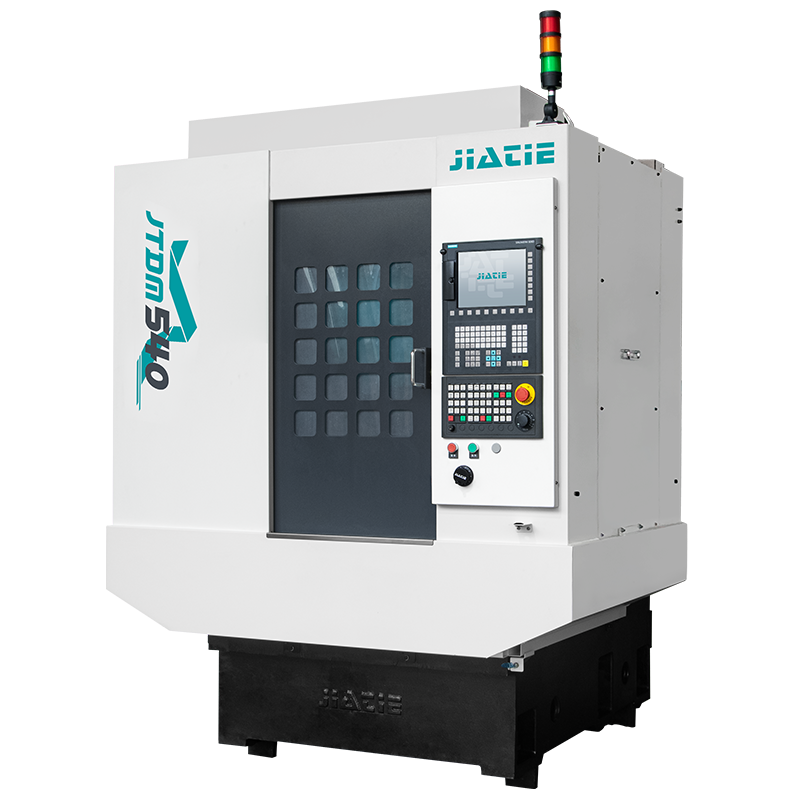

5. Introducing the JTDM-540 CNC Drilling and Milling Machine
The JTDM-540 CNC Drilling and Milling Machine is an advanced, high-efficiency Machining Center designed to integrate precision drilling and powerful milling capabilities into one system.
It is ideal for manufacturers who require fast cycle times, high reliability, and flexible production setups for batch processing.
Key Features of the JTDM-540 CNC Drilling and Milling Machine
High-Speed Tool Change System
The machine is equipped with a high-speed tool change system, allowing tools to be replaced quickly and efficiently. This minimizes idle time between operations, significantly improving productivity.
High Processing Speed
With efficient and high-speed processing capabilities, the JTDM-540 can handle intensive machining tasks while maintaining precision. It’s particularly suitable for batch processing products, where consistency and repeatability are essential.
Excellent Human-Computer Interaction Interface
The machine features an intuitive interface that enhances user experience. Operators can easily program, monitor, and adjust operations, making it accessible even for less experienced technicians.
Accurate and Reliable Positioning
Equipped with advanced motion control and servo systems, the JTDM-540 ensures every tool movement is accurate. This guarantees high-quality machining results and consistent dimensional precision.
Advanced Famous Brand CNC System
The machine is built with a world-class CNC control system, offering powerful, stable, and reliable operation. It supports complex machining codes and provides real-time process monitoring, improving efficiency and safety.
Reduced Idle Time and Maximum Uptime
Designed for fast operation and minimal waiting, the JTDM-540 cnc drilling and milling machine maximizes production efficiency and minimizes non-cutting time.
6. The Difference Between CNC Milling, CNC Drilling, and CNC Turning
Feature | CNC Milling | CNC Drilling | CNC Turning |
Tool Movement | Rotating cutting tool moves along X, Y, Z axes | Drill bit moves vertically into workpiece | Stationary cutting tool, rotating workpiece |
Main Purpose | Shaping surfaces and contours | Creating precise holes | Producing round/cylindrical shapes |
Workpiece Movement | Fixed or lightly adjusted | Fixed | Continuously rotating |
Machine Example | CNC Milling Machine / CNC Drilling Milling Machine | CNC Drilling Machine | CNC Turning Center |
Complexity | High | Moderate | Moderate |
Applications | 3D parts, molds, housings | Hole drilling, tapping | Shafts, pins, bushings |
From this comparison, it’s clear that CNC drilling and milling combine complementary processes. A cnc drilling milling machine like the JTDM-540 allows both surface shaping and hole drilling on the same platform, improving workflow and reducing setup time.
7. Why Choose a CNC Drilling and Milling Machine Like the JTDM-540
The JTDM-540 cnc drilling and milling machine provides a powerful combination of versatility, efficiency, and reliability, making it ideal for high-precision industries.
Advantages at a Glance:
Perform multiple operations (drilling, milling, tapping) in a single setup
Shorten cycle time and increase throughput
Ensure accuracy with advanced positioning systems
Simplify operation with a user-friendly interface
Maintain stability and performance with a high-quality CNC system
Industrial Applications:
Automotive: Machining of engine blocks, brackets, and components.
Aerospace: Precision drilling and milling of structural and turbine parts.
Electronics: Machining housings, connectors, and aluminum frames.
Tooling & Molds: Creating cavities, holes, and surface contours efficiently.
8. Performance Highlights of the JTDM-540 CNC Drilling and Milling Machine
High-Speed Performance
With optimized motion control and reduced idle time, the machine ensures each cycle runs smoothly and efficiently. The high-speed tool change system makes it ideal for high-volume production environments.
Precision Engineering
The accurate and reliable positioning system ensures consistency across large batches, maintaining tight tolerances and high-quality finishes.
User-Friendly Operation
The excellent human-computer interaction interface simplifies programming and monitoring. Operators can easily adjust parameters to match part complexity and production goals.
Dependable Control System
Powered by an advanced famous brand CNC system, the JTDM-540 guarantees superior process control, fast data processing, and minimal downtime.
High Productivity in Batch Processing
Designed for efficient and high-speed processing, the machine excels in continuous production environments—making it an excellent choice for batch processing products.
9. The Value of Integrated Machining Solutions
Traditionally, manufacturers needed separate machines for drilling and milling. The introduction of integrated systems like the JTDM-540 CNC Drilling and Milling Machine eliminates that limitation.
By merging both capabilities into one platform, users benefit from:
Less floor space usage
Reduced equipment investment
Shorter setup and cycle times
Improved machining consistency
This level of integration supports the shift toward Industry 4.0—smart, connected, and highly efficient production environments.
10. Conclusion
Understanding the difference between CNC milling, CNC drilling, and CNC turning is essential for optimizing production strategies.
CNC Milling focuses on complex surface shaping.
CNC Drilling specializes in precision hole-making.
CNC Turning produces perfectly round and cylindrical parts.
For manufacturers looking to streamline operations and increase output, the JTDM-540 CNC Drilling and Milling Machine offers the best of both worlds.
With its high-speed tool change system, efficient processing capabilities, intuitive interface, precise positioning, and advanced CNC control, the JTDM-540 stands as a next-generation cnc drilling and milling machine designed to meet the growing demand for speed, accuracy, and reliability in modern machining.
By investing in the JTDM-540 cnc drilling machine, manufacturers can achieve superior efficiency, higher product quality, and a stronger competitive edge in today’s precision manufacturing landscape.
