In the world of modern manufacturing, precision and efficiency define the difference between ordinary and outstanding production. The vertical Machining Center (VMC) stands as a cornerstone of precision machining, enabling industries to achieve higher productivity, tighter tolerances, and superior surface finishes. Among the many models available on the market today, the JTVC-1166 Vertical Machining Center is a shining example of advanced engineering, exceptional design, and reliable performance.
What Is a Vertical Machining Center?
A vertical machining center, often abbreviated as VMC, is a type of CNC (Computer Numerical Control) milling machine that features a vertically oriented spindle. The spindle holds the cutting tool and moves along the Z-axis, while the workpiece remains fixed on a table that moves along the X and Y axes.
This configuration allows for exceptional visibility, precision, and ease of operation, making the CNC Vertical Machining Center a preferred choice for tasks such as drilling, tapping, boring, and contour milling.
Unlike traditional milling machines, modern VMCs are computer-controlled, meaning they can perform complex operations with minimal human intervention. This Automation not only enhances productivity but also ensures consistent machining quality, even in large-scale production runs.

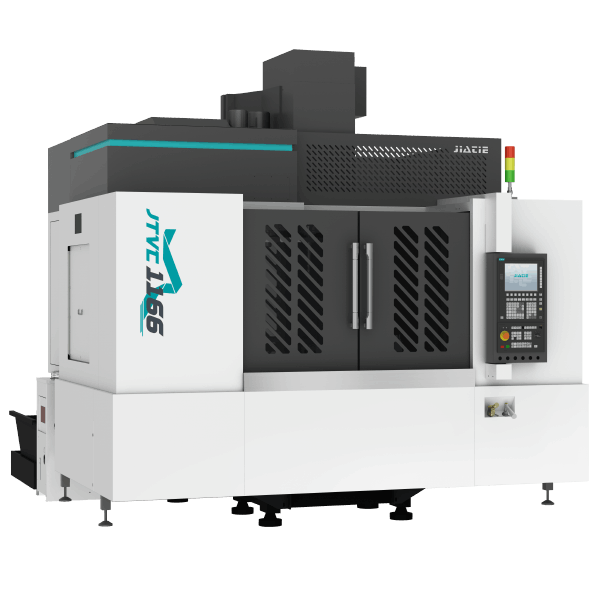

Introducing the JTVC-1166 Vertical Machining Center
The JTVC-1166 Vertical Machining Center is designed for manufacturers who demand reliability, precision, and efficiency. Built upon years of CNC machine design and manufacturing experience, this model integrates advanced Finite Element Method (FEM) analysis to optimize structural rigidity and reduce vibration during operation.
Its robust construction, superior spindle system, and intelligent design make it ideal for processing a wide range of materials — from aluminum and steel to high-strength alloys.
Key Technical Specifications
Parameter | JTVC-1166 Specification |
X / Y / Z Travel | 1100 / 650 / 600 mm |
Work Table Dimension | 1200 × 650 mm |
Maximum Workpiece Height | 600 mm |
Maximum Load of Worktable | 1100 kg |
Machine Dimensions (L×W×H) | 2960 × 2750 × 2950 mm |
Machine Net Weight | 7500 kg |
Spindle Type | Short nose BBT40 |
Cooling System | Forced spindle cooling |
Chip Removal | Automatic chip removal device |
Outstanding Design and Engineering Features
1. FEM-Optimized Structure for Stability and Rigidity
Every main component of the JTVC-1166, including the base, column, and saddle, is developed using finite element analysis (FEM) to achieve maximum rigidity and stability. Internal stresses are effectively eliminated during the manufacturing process, ensuring that the machine maintains long-term structural integrity.
This design not only enhances cutting precision but also ensures that the CNC vertical machining center operates smoothly under high-load conditions.
2. Precision Linear Guide System for All Axes
The JTVC-1166 features a three-axis linear precision guide system that offers rapid acceleration and deceleration. This configuration boosts machining efficiency and maintains high levels of accuracy, even during intensive, high-speed operations.
Whether you are performing fine surface finishing or deep cavity milling, the JTVC-1166 delivers consistent and reliable results.
3. High-Performance BBT40 Spindle with Cooling System
At the heart of this vertical machining center is its short nose BBT40 spindle, driven by a powerful motor and supported by a forced cooling system. This setup provides remarkable cutting performance, minimizing heat buildup during prolonged operations and preserving tool life.
The spindle’s design also supports heavy-duty machining while maintaining exceptional smoothness and precision.
4. Stable Base and Column for Dynamic Balance
The machine’s stable base and column are carefully balanced with lightweight moving components, ensuring optimal motion control during acceleration and deceleration. This dynamic balance allows for faster cycle times without compromising precision or surface finish.
5. Efficient Chip Removal System
The automatic chip removal device enhances operational convenience and cleanliness, ensuring that chips and debris are promptly cleared from the work area. This contributes to improved cutting efficiency and reduces downtime for maintenance.
Advantages of the JTVC-1166 CNC Vertical Machining Center
Exceptional Rigidity: FEM-based design guarantees vibration-free cutting and stable performance.
High Machining Accuracy: Linear guide system and precision spindle ensure consistent dimensional tolerances.
Enhanced Productivity: Rapid axis response improves machining speed and reduces cycle time.
Durability and Reliability: Robust cast structure resists deformation, ensuring a long service life.
User-Friendly Operation: Automated functions like chip removal simplify the workflow and reduce operator fatigue.
Versatile Application Range: Suitable for components in mold, aerospace, medical, automotive, and general metal fabrication industries.
Applications Across Industries
The JTVC-1166 Vertical Machining Center is engineered to meet the demands of modern precision industries. Its high rigidity and accuracy make it suitable for machining complex parts, molds, and dies.
Automotive Industry: Engine components, transmission housings, and precision brackets.
Aerospace Sector: High-strength structural parts and turbine components.
Mold Manufacturing: Injection mold bases, die-casting molds, and precision cavities.
General Engineering: Custom metal parts, tool holders, and prototype manufacturing.
Whether you’re producing single custom parts or managing large production batches, the JTVC-1166 CNC vertical machining center ensures consistent performance and superior surface finishes.
Why Choose a Vertical Machining Center Like the JTVC-1166?
In the competitive landscape of modern manufacturing, precision and speed are vital. Choosing a vertical machining center such as the JTVC-1166 means investing in technology that enhances both.
Its advanced design ensures reduced setup time, stable machining at high speeds, and reliable accuracy for even the most complex geometries. The integration of CNC technology enables automated control, meaning less manual intervention and reduced human error — translating directly into higher productivity and lower production costs.
Conclusion
The JTVC-1166 Vertical Machining Center embodies the next generation of CNC machining excellence — blending robust mechanical structure, precise linear motion, and intelligent cooling and chip removal systems.
For manufacturers seeking a cnc vertical machining center that delivers high performance, stability, and versatility, the JTVC-1166 is a trusted solution designed to exceed expectations.
By combining advanced FEM engineering, high-speed accuracy, and operational convenience, it sets new standards in vertical machining efficiency and reliability — making it an indispensable tool for precision-driven industries around the world.
