In the era of smart manufacturing, precision, speed, and flexibility are no longer optional—they are essential. As industries continue to evolve toward Automation and digitalization, advanced machining tools like the CNC Drilling and Milling Machine have become the backbone of modern production lines. Among these, the JTDM-540+ CNC Drilling and Milling Machine stands out for its exceptional precision, robust design, and superior efficiency, making it a top choice for batch processing in industries such as aerospace, automotive, and precision electronics.
1. What Is a CNC Drilling and Milling Machine?
A CNC drilling and milling machine is a multifunctional Machining Center designed to perform both drilling and milling operations under computer numerical control. Unlike traditional manual machines, CNC drilling and milling centers combine advanced automation with precision engineering to achieve accurate, consistent, and complex machining results.

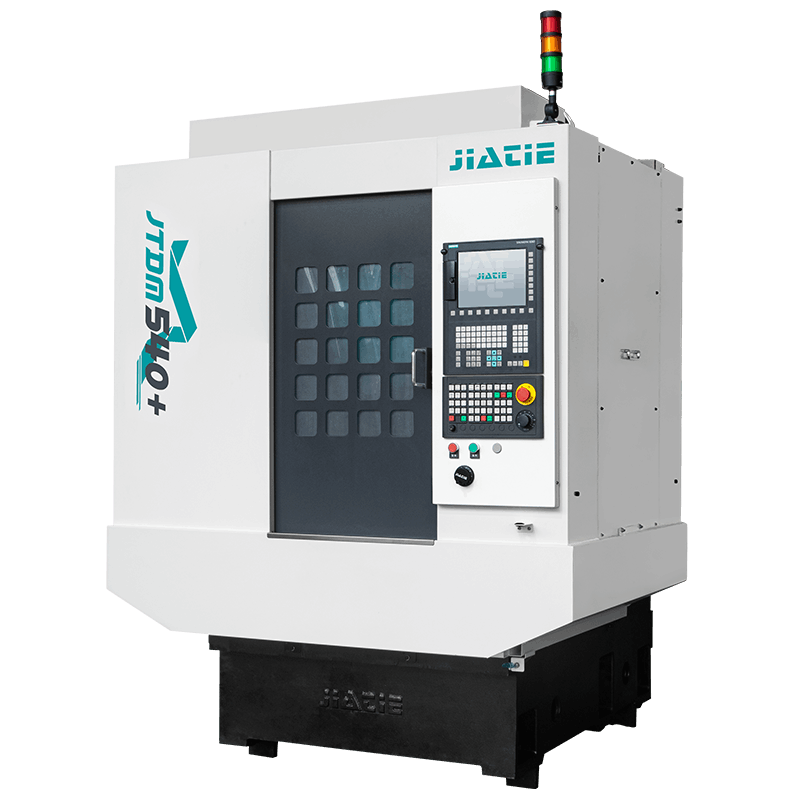

The JTDM-540+ CNC Drilling and Milling Machine exemplifies this integration. It uses an advanced CNC system to control multiple axes simultaneously—executing drilling, milling, tapping, and boring with minimal human intervention. Equipped with a high-speed tool change system and a servo-driven structure, it ensures fast tool switching, high processing efficiency, and stable performance during long production runs.
Its X/Y/Z travel ranges of 500/400/320mm (standard high column) and 500/400/370mm (higher column) allow the JTDM-540+ to handle a wide variety of workpiece sizes, while the worktable dimension of 620×400mm and maximum worktable load of 250kg ensure strong adaptability for both small and medium-scale production.
2. How Does CNC Drilling Work?
CNC drilling is a highly automated process where a CNC drilling machine uses programmed commands to drill precise holes at defined locations on a workpiece. The process begins with a digital model or G-code, which dictates the tool path, depth, and feed rate. The machine’s control system interprets these commands and drives the spindle and axes to execute the drilling operation with pinpoint accuracy.
In the JTDM-540+ CNC Drilling and Milling Machine, the process is enhanced through:
High-speed tool change system: This feature enables rapid switching between different drill bits or milling cutters, reducing idle time and maximizing productivity.
Accurate and reliable positioning: The advanced servo control ensures the spindle returns to the exact coordinates after every operation, maintaining consistency across multiple parts.
Powerful CNC system: Equipped with a famous-brand CNC controller, the JTDM-540+ provides stable performance, real-time diagnostics, and intuitive human-machine interaction.
High-speed processing capability: The design focuses on reducing non-cutting movement time, allowing efficient and continuous drilling cycles in batch production environments.
This intelligent workflow ensures that each hole or cut is made at the precise location, with the correct depth and diameter, eliminating human error and enhancing repeatability.
3. What Are the Different CNC Drilling Operations?
CNC drilling involves several specific types of operations, each designed for different applications and material characteristics. The JTDM-540+ CNC drilling and milling machine supports all major CNC drilling methods, including:
Center Drilling: Creates a small guide hole to ensure subsequent drilling accuracy.
Deep Hole Drilling: For holes with a large depth-to-diameter ratio, supported by coolant-through spindles for heat dissipation.
Countersinking and Counterboring: Used to accommodate screw heads or create flat-bottomed holes.
Tapping: Integrates drilling and threading in one machine, improving efficiency for components requiring internal threads.
Spot Drilling: Initiates drilling at precise locations, improving hole placement accuracy.
The JTDM-540+ excels in these operations through its efficient servo-driven spindle and stable Z-axis box-type structure, which enhances dynamic performance and minimizes vibration during deep or high-speed drilling.
4. What Are the Key Components of a CNC Drilling and Milling Machine?
The precision and performance of a CNC drilling and milling center depend on its core structural and functional components. The JTDM-540+ CNC drilling and milling machine incorporates the following key parts:
CNC Control System
The brain of the machine, this system interprets G-code and controls motion along the X, Y, and Z axes. The JTDM-540+ features an advanced famous-brand CNC system that provides real-time feedback, ensuring precise synchronization of all movements.
Spindle Unit
The spindle is responsible for holding and rotating the cutting tools. High rotational accuracy and speed are vital. In the JTDM-540+, the spindle supports high-speed drilling and milling to accommodate a range of materials—from aluminum to alloy steel.
Worktable
With a 620×400mm worktable capable of supporting up to 250kg, the JTDM-540+ provides ample space and rigidity for stable clamping of workpieces.
Tool Magazine and Automatic Tool Changer (ATC)
The machine’s servo tool changing system allows fast and reliable tool swaps, minimizing downtime during continuous operations.
Feed Drive System
Driven by precision servomotors and ball screws, this system ensures smooth linear motion and accurate feed rate control.
Machine Bed and Column
Constructed from high-strength cast iron, the box-type Z-axis structure of the JTDM-540+ enhances rigidity, vibration resistance, and overall machining stability.
Human-Machine Interface (HMI)
A user-friendly interface with clear display functions allows operators to monitor and control the entire machining process efficiently.
5. What Are the Different Types of CNC Drilling Machines?
CNC drilling machines can be categorized based on design, axis configuration, and application. The main types include:
Vertical CNC Drilling Machines – Spindle is vertically aligned; ideal for high-precision drilling and tapping tasks.
Horizontal CNC Drilling Machines – Designed for deep hole drilling and larger workpieces.
CNC Drilling and Milling Centers – Combine milling, drilling, and tapping in one setup, ideal for multi-operation part production.
CNC Deep Hole Drilling Machines – Specialized for long, narrow holes using coolant-fed drill bits.
CNC Gang Drilling Machines – Equipped with multiple spindles for simultaneous multi-hole drilling.
The JTDM-540+ CNC Drilling and Milling Machine falls under the CNC drilling and milling center category, offering multifunctional performance suitable for complex machining processes with high precision and repeatability.
6. What Are the Different Types of CNC Drill Bits?
Drill bits used in CNC drilling machines vary depending on material, geometry, and application. Common types include:
Twist Drills – General-purpose bits suitable for most materials.
Center Drills – Used for initial hole centering.
Step Drills – Allow multiple diameters to be drilled in a single operation.
Spade Drills – Suitable for larger holes.
Carbide Drills – Provide high wear resistance and longer life for hard materials.
Coolant-Fed Drills – Designed with internal channels to deliver coolant directly to the cutting edge, improving heat management.
The JTDM-540+ CNC drilling and milling machine supports a wide range of tool types, enhancing its versatility for different materials and operations.
7. What Are the Main Parameters of CNC Drilling?
Key performance parameters of CNC drilling include:
X/Y/Z Travel: Determines the maximum range of motion—500/400/320mm or 500/400/370mm (higher column).
Worktable Size: 620×400mm, offering generous workspace for complex parts.
Maximum Workpiece Height: 480mm (standard) and 630mm (higher column) configurations.
Maximum Worktable Load: 250kg, ensuring rigidity under heavy workpieces.
Machine Dimensions: 1620×2080×2460mm (standard) and 1620×2080×2610mm (higher column).
Net Weight: 2700kg, providing stability during high-speed machining.
These parameters make the JTDM-540+ CNC drilling and milling machine a powerhouse for efficient, accurate, and reliable production.
8. Processing Capabilities and Electric Spindle Advantages
The JTDM-540+ CNC Drilling and Milling Machine is more than just a drilling machine—it is a full-featured composite machining center capable of drilling, tapping, and milling in a single setup. Its high-precision electric spindle (Direct-Drive Spindle) provides clear advantages over conventional mechanical spindles.
Multi-functional machining: Drill holes, tap threads, and mill complex surfaces in one setup, reducing secondary operations.
Superior surface finish: Achieves Ra 0.8–1.6 μm, suitable for aluminum, copper, and high-precision steel components.
High stability and precision: Servo-driven spindle with low vibration ensures repeatable accuracy.
Wide material adaptability: Efficiently processes aluminum, copper, brass, stainless steel, alloy steel, and aerospace-grade materials.
Time and cost efficiency: Single-clamping machining reduces errors, shortens production cycles, and improves overall yield.
Compared with traditional mechanical spindles, the electric spindle offers:
Feature | Electric Spindle | Mechanical Spindle |
Speed Control | Electronic, precise | Belt/geared, less responsive |
Vibration | Minimal, smooth | Higher, may affect surface finish |
Thermal Stability | Built-in cooling, low thermal drift | Heat buildup, expansion risk |
Maintenance | Low wear, long lifespan | Frequent maintenance required |
The JTDM-540+ excels in complex components, mold parts, automotive parts, and precision electronics, providing high efficiency and superior quality in batch production.
Conclusion
The JTDM-540+ CNC Drilling and Milling Machine represents the next generation of smart machining technology—integrating precision engineering, high-speed performance, and user-friendly design. Its high-speed tool change system, stable box-type Z-axis, and advanced CNC control ensure consistent accuracy, while its electric spindle and multi-functional capabilities enable one-machine completion of drilling, tapping, and milling tasks.
In modern manufacturing, where efficiency and accuracy define competitiveness, the JTDM-540+ stands out as a benchmark for excellence. Whether used in small workshops or large-scale industrial production, it delivers powerful results with minimal downtime, proving that the future of machining lies in precision automation and intelligent control.
