What Is 5 Axis CNC Machining?

5 axis CNC machining refers to a machining process in which a cutting tool can move along five different axes simultaneously. Unlike traditional 3-axis machines that move in X, Y, and Z directions, a 5 axis CNC Machining Center adds two additional rotational axes—typically labeled as A and B or A and C.

This additional range of motion allows the cutting tool to approach the workpiece from virtually any direction, enabling the machining of complex geometries with a single setup. The result is higher precision, reduced setup time, and the ability to produce intricate parts that would be impossible or extremely time-consuming with traditional equipment.

In industries such as aerospace, medical devices, and automotive manufacturing, where tolerances are tight and efficiency is crucial, 5 axis Machining Centers have become an indispensable technology.

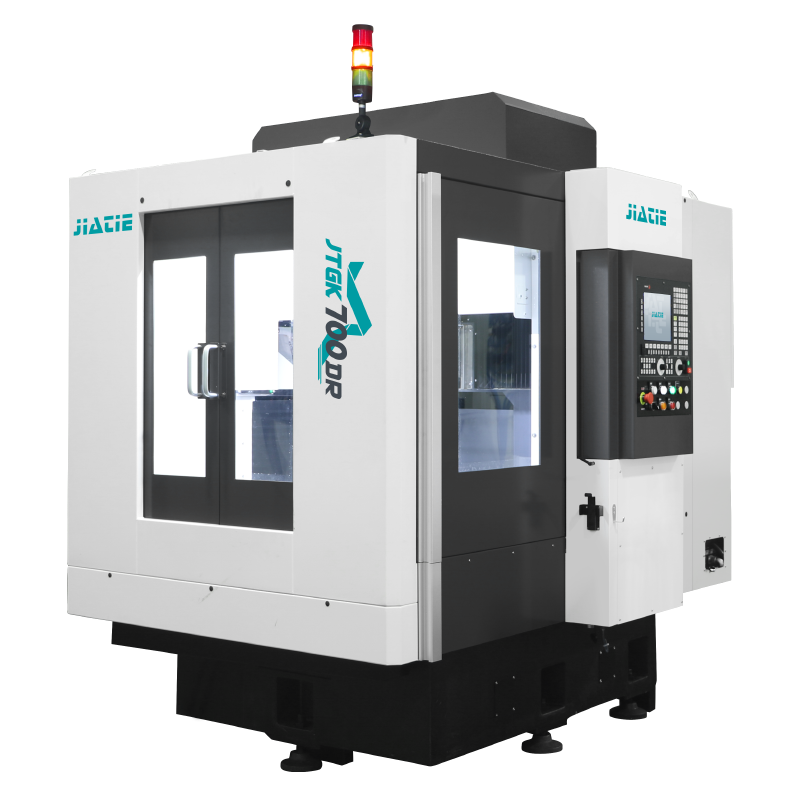

The JTGK-700DR 5-Axis Machining Center: Redefining High-Precision Manufacturing

At the forefront of this technology stands the JTGK-700DR 5-Axis Machining Center, a new-generation model designed to deliver precision, reliability, and speed. Built with an entirely new structural concept and advanced components, it represents a blend of high-end technology and user-centered design.

Core Technical Features

1. DD Direct Drive High-Speed Rotary Table

One of the most remarkable features of the JTGK-700DR 5 axis machining center is its DD (Direct Drive) high-speed rotary table. Unlike conventional rotary tables that rely on belt or gear transmission, the DD system directly connects the motor to the rotary axis.

This design delivers accurate and reliable positioning, with almost no backlash or transmission loss. The result is smoother motion control and superior surface finish quality, which is critical in high-precision components such as turbine blades, impellers, and medical implants.

Furthermore, the DD drive system minimizes maintenance requirements and improves long-term stability, ensuring consistent accuracy even under intensive production cycles.

2. High Moving Speed for Maximum Productivity

In mass production and batch processing environments, non-cutting time can significantly affect overall efficiency. The JTGK-700DR 5-Axis CNC Machining Center addresses this challenge with its high-speed linear axes, which dramatically reduce idle movement between cutting operations.

The result is faster cycle times, making it ideal for manufacturers who aim to improve throughput without compromising quality. Whether processing aluminum alloys, stainless steel, or titanium, the JTGK-700DR’s dynamic performance ensures stable, vibration-free operation even at high feed rates.

3. Brand-New Machine Structure: Stable, Reliable, and Efficient

The JTGK-700DR adopts a completely new mechanical structure design, achieving a balance between stability, rigidity, and precision. The upgraded frame minimizes vibration during high-speed cutting, and the overall rigidity supports consistent dimensional accuracy across long production runs.

Thanks to this enhanced structure, users benefit from high repeatability and durability, making the JTGK-700DR suitable for heavy-duty cutting and high-precision finishing alike.

Its box-type Z-axis structure improves dynamic response and enhances mechanical stiffness, ensuring the spindle maintains perfect alignment even during complex 5-axis motion. This translates directly into higher surface accuracy and extended tool life.

4. All-in-One Exterior Design: Compact and Humanized

Unlike traditional CNC systems with separate electrical cabinets and control units, the JTGK-700DR 5 axis machining center integrates all systems into a high-end all-in-one exterior design.

This compact design reduces the machine’s floor space, making it easier to install and manage in crowded workshops. Beyond aesthetics, this design philosophy also emphasizes ergonomics—the control interface is intuitive and user-friendly, enabling operators to easily monitor machining conditions and adjust parameters in real time.

The enclosure is designed for safety and cleanliness, effectively containing chips and coolant while maintaining easy access for maintenance.

5. Intelligent Tool Management with Servo Tool-Changing System

Another standout feature is the servo-driven tool magazine, which ensures fast and reliable tool changing. In traditional machining centers, tool change time can become a bottleneck—particularly during multi-operation machining.

The servo tool-changing system used in the JTGK-700DR minimizes this downtime, enabling rapid tool swaps while maintaining accuracy in positioning. The result is uninterrupted machining, higher productivity, and reduced operator intervention.

Additionally, the automatic tool management system can monitor tool wear and optimize tool paths, further improving production consistency.

6. High Accuracy and Rigidity for Demanding Applications

Precision is the foundation of modern machining. The JTGK-700DR 5 axis cnc machining center delivers micron-level accuracy, making it ideal for industries that require high tolerance control. Its combination of high rigidity and advanced servo control guarantees exceptional performance across all five axes, even during simultaneous multi-axis cutting.

For components such as aerospace turbine blades, automobile engine housings, and medical device molds, this level of precision ensures flawless surface quality and dimensional accuracy.

7. Humanized Operation and Smart Control System

The JTGK-700DR is not only engineered for precision but also for operator convenience. Its humanized control interface provides an intuitive, easy-to-learn environment that allows operators to quickly set up and monitor machining operations.

Advanced functions such as real-time temperature compensation, automatic error correction, and process simulation enhance the reliability of the machining process while reducing the risk of operator error.

In addition, the machine’s intelligent software system supports data integration and remote monitoring—ideal for smart manufacturing environments and Industry 4.0 factories.

Applications of the JTGK-700DR 5-Axis Machining Center

With its comprehensive design and performance advantages, the JTGK-700DR is suitable for a wide range of industries:

Aerospace Industry: Machining of turbine blades, structural components, and complex aerodynamic surfaces.

Automotive Manufacturing: Precision molds, engine blocks, and aluminum alloy components.

Medical Devices: Surgical implants, dental components, and prosthetic parts requiring fine detailing.

Energy Sector: Machining of impellers, rotors, and compressor blades.

Mold and Die Industry: Complex 3D contouring for injection molds and precision dies.

Why Choose the JTGK-700DR for 5 Axis Machining?

The competitive edge of the JTGK-700DR lies in its ability to integrate speed, precision, and stability in one system. Manufacturers looking for a 5 axis machining center that can deliver both productivity and accuracy will find the JTGK-700DR an excellent choice.

Key Advantages at a Glance:

DD Direct Drive High-Speed Rotary Table ensures precise, stable rotation.

Box-Type Z-Axis Structure enhances rigidity and dynamic performance.

Servo Tool-Changing System provides fast, reliable tool swaps.

Compact All-in-One Design minimizes space usage and simplifies operation.

High Moving Speed shortens idle time, maximizing output efficiency.

Humanized Interface ensures intuitive operation and smart management.

Conclusion: The Future of Intelligent Manufacturing

As global manufacturing continues to evolve toward automation, intelligence, and sustainability, 5 axis cnc machining centers like the JTGK-700DR are becoming essential tools for achieving next-level productivity and precision.

The JTGK-700DR’s combination of advanced mechanical design, intelligent control, and high-speed performance embodies the future of modern machining. It not only empowers manufacturers to produce more complex and accurate parts but also enhances overall production efficiency and competitiveness.

For companies pursuing excellence in precision engineering, the JTGK-700DR 5-Axis Machining Center represents more than a machine—it’s a gateway to smarter, faster, and more sustainable manufacturing.
