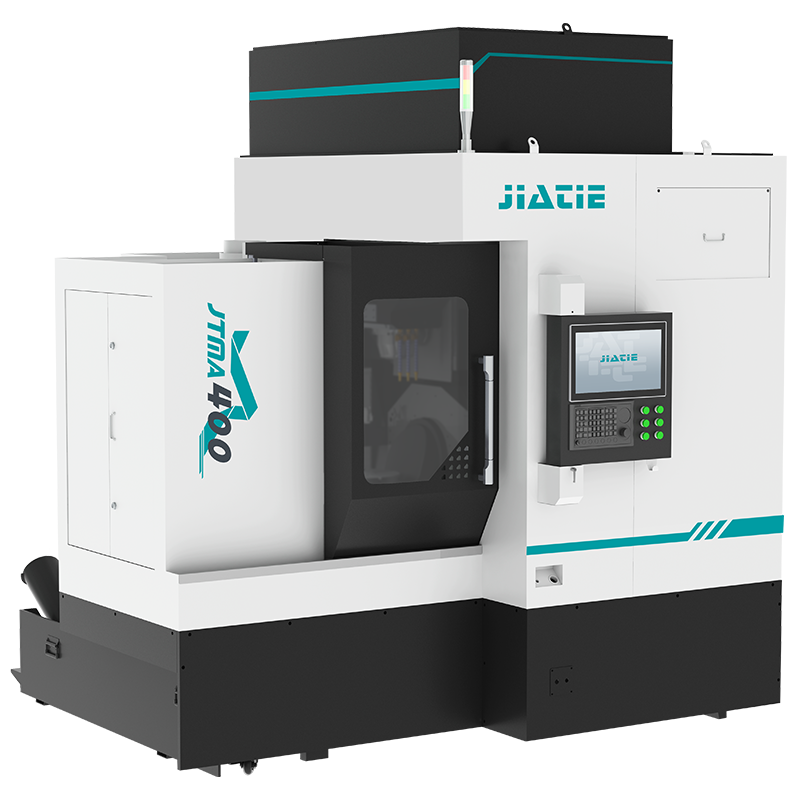

In today’s era of advanced manufacturing, precision, speed, and reliability are the cornerstones of competitive machining. The JTMA-400 5-Axis High Speed Machine is a leading solution that embodies these values through its cutting-edge structural design and engineering excellence. Its optimized gantry structure, advanced CNC control, and integrated human-machine interface ensure superior stability, exceptional machining performance, and maximum productivity.
1. The Importance of Machine Stability in High-Speed Machining
When it comes to 5-axis machining, stability is not just a desirable feature—it is essential. High-speed, simultaneous 5-axis movements generate significant forces on the machine structure, and even the slightest vibration or thermal drift can compromise accuracy. Poor structural rigidity results in chatter, poor surface finish, and dimensional inaccuracy. The JTMA-400 addresses these challenges with a meticulously optimized gantry-style machine structure designed for superior rigidity, thermal stability, and vibration suppression.
By reducing deformation under heavy cutting loads and minimizing dynamic errors, the JTMA-400 allows manufacturers to maintain tight tolerances even under high-speed and high-volume production conditions.
2. Gantry Structure: The Backbone of Stability
At the heart of the JTMA-400 is its gantry-type construction, a design well-known for its excellent rigidity and dynamic characteristics. Unlike traditional C-frame machines, the gantry structure distributes loads evenly across both sides of the machine, effectively minimizing deflection and enhancing precision retention.
Better Dynamic Property: The symmetrical design of the gantry ensures smooth and stable motion during high-speed simultaneous machining. This leads to more predictable tool paths, improved repeatability, and a higher-quality surface finish.
Improved Thermal Symmetry: Thermal expansion is evenly distributed, reducing positional errors caused by temperature variations. This is critical for industries like aerospace and medical device manufacturing, where micron-level accuracy is required.
Enhanced Long-Term Precision: The gantry’s robust design means the machine maintains its accuracy over years of use, reducing recalibration frequency and maximizing uptime.
This structural foundation gives the JTMA-400 an edge in complex part machining, where consistent precision is non-negotiable.
3. Fully Closed-Loop Control for Ultimate Accuracy
Structure alone cannot guarantee precision—control systems are equally important. The JTMA-400 is equipped with fully closed-loop control technology, which continuously monitors and adjusts axis positions in real time. This eliminates backlash errors, compensates for minor disturbances, and ensures the machine delivers high-efficiency, high-accuracy machining results.
Combined with its RTCP (Rotational Tool Center Point) function, the JTMA-400 guarantees smooth, highly accurate 5-axis simultaneous machining. This function dynamically calculates tool positions, enabling complex surface machining without the need for frequent manual repositioning of the workpiece. The result is faster setup times, higher productivity, and reduced risk of operator error.
4. Direct Drive Rotary Tables: High-Speed Response and Reliability
A key element in the JTMA-400’s structural stability and dynamic performance is its DD (Direct Drive) rotary tables. Unlike gear-driven systems, direct-drive motors provide:
Zero Backlash Motion: Eliminating gear transmission removes mechanical play, ensuring smooth rotary motion and precise angular positioning.
Fast Response Time: Direct-drive technology enables near-instantaneous acceleration and deceleration, allowing for shorter cycle times and higher throughput.
Long-Term Reliability: With fewer moving parts, wear and tear are minimized, reducing maintenance needs and improving uptime.
This technology is especially valuable for applications such as impeller machining, aerospace component production, and complex mold manufacturing, where precise angular synchronization is critical.
5. Machine Isolation and Easy Maintenance
The JTMA-400’s designers paid careful attention to maintenance efficiency and operator convenience. All moving components are completely isolated from the machining area, preventing chips, coolant, and debris from contaminating sensitive mechanical parts. This not only extends machine life but also makes daily cleaning quick and straightforward, reducing downtime.
Moreover, the machine is designed with an excellent human-machine interface, ensuring that operators can easily control the machine, monitor status, and make adjustments with minimal effort. This ergonomic approach improves productivity and reduces operator fatigue during long production runs.
6. Optional Spindle Configurations for Industry-Specific Needs
Different industries have different machining requirements—some demand high torque for heavy-duty cutting, while others prioritize extremely high spindle speeds for fine finishing. The JTMA-400 addresses this by offering large-torque or high-speed spindle options, allowing manufacturers to tailor the machine to their specific applications.
This versatility makes the JTMA-400 a perfect fit for:
Aerospace: Titanium, Inconel, and aluminum structural components.
Automotive: Engine components, molds, and prototype parts.
Medical: Orthopedic implants and surgical instruments with complex contours.
General Manufacturing: Precision molds, dies, and high-value custom components.
7. Technical Specifications at a Glance
Specification | Value |
X / Y / Z Travel | 500 / 680 / 400 mm |
Max Workpiece Diameter | Φ500 mm |
Max Workpiece Height | 410 mm |
Max Load of Worktable | 150 kg |
Machine Net Dimension | 2570 × 2650 × 2880 mm |
Machine Net Weight | 9000 kg |
These specifications underscore the JTMA-400’s ability to handle large, heavy workpieces with outstanding precision and stability, making it a robust solution for demanding production environments.
8. Advantages of JTMA-400’s Structural Design
The combination of its gantry structure, direct drive rotary tables, and closed-loop control provides users with clear advantages:
Superior Simultaneous 5-Axis Accuracy: RTCP function ensures smooth, precise tool movements, reducing machining errors.
Dynamic Performance: Gantry design delivers excellent vibration resistance and stable motion for high-speed cutting.
Reduced Setup Time: Easy workpiece positioning and software compensation save valuable production time.
Consistent Quality: Thermal stability and rigidity guarantee repeatable accuracy across long production runs.
9. How Stability Enhances Machining Quality
Stability in machine design directly affects surface finish, dimensional accuracy, and tool life. The JTMA-400’s engineering solutions—gantry structure, thermal symmetry, and isolated moving parts—help eliminate issues like chatter marks, uneven cuts, and dimensional drift. This translates into:
Better Part Quality: High surface smoothness reduces the need for secondary finishing operations.
Lower Production Costs: Less scrap, less rework, and longer tool life improve profitability.
Higher Customer Satisfaction: Consistent quality builds trust with clients in industries where tolerances are tight.
10. Conclusion: Engineering Excellence for Future-Ready Manufacturing
The JTMA-400 5-Axis High Speed Machine is a showcase of what optimized machine structure design can achieve. Its gantry construction, direct-drive rotary tables, and fully closed-loop control form a perfect synergy to deliver high stability, outstanding precision, and long-term reliability.
For manufacturers looking to stay ahead in industries that demand extreme accuracy—such as aerospace, automotive, and medical—the JTMA-400 offers not only cutting-edge technology but also the peace of mind that comes with superior engineering. Its ergonomic design, easy maintenance, and customizable spindle options further ensure that this machine remains a valuable asset for years to come.
