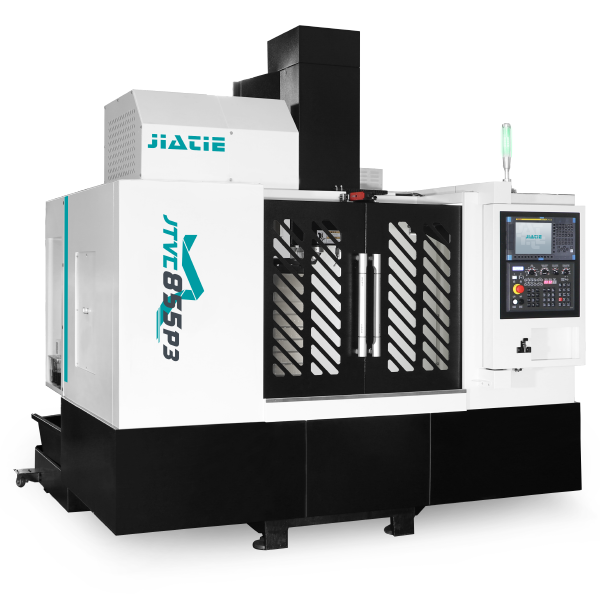

In today’s manufacturing industry, precision, stability, and efficiency are the cornerstones of successful machining operations. The JTVC-855P3 Vertical Machining Center was engineered with these demands in mind, offering superior structural rigidity, high-performance stability, and operator-friendly design. This advanced machining center is designed to meet the complex needs of aerospace, automotive, mold-making, and high-precision part production.
Advanced Structural Design Backed by FEM Analysis
With years of machine design expertise, the JTVC-855P3 incorporates finite element method (FEM) analysis to optimize its structure. This exclusive design ensures dynamic performance across the entire machine, minimizing vibration and deformation even under heavy cutting conditions. The result is outstanding rigidity and long-term machining accuracy, critical for demanding industries.
High-Precision Linear Guide System
The JTVC-855P3 adopts a linear guide design on all three axes (X/Y/Z). This configuration reduces friction and noise while enhancing smooth motion. Operators benefit from a machine that not only moves with precision but also maintains stability during high-speed machining. Whether handling rapid prototyping or mass production, the JTVC-855P3 delivers accuracy without compromise.
Tool Capacity and Reliability
Equipped with an arm-type tool magazine with a 24-tool capacity, the JTVC-855P3 ensures seamless tool changes. This reliable and efficient system supports complex machining tasks that require multiple tool variations, significantly reducing downtime and boosting productivity.
Powerful Cutting with BT40 Tool Connector
To enhance cutting performance, the machine integrates a BT40 high-rigidity tool connector paired with a powerful motor. This combination allows for superior material removal rates, making it ideal for industries requiring consistent performance in steel, aluminum, and alloy machining.
Optimized Chip Removal and Cooling Design
The JTVC-855P3 features dual lateral slopes for chip evacuation toward the rear side, along with an intelligently placed coolant system. This humanized design not only increases machining efficiency but also simplifies maintenance, ensuring a clean work environment and consistent performance.
User-Friendly and Safe Operation
The Vertical Machining Center comes with a fully enclosed protective structure, offering excellent safety and easy operation. Its ergonomic design ensures that operators can manage complex machining tasks comfortably, improving productivity while maintaining workplace safety standards.
Technical Specifications
X/Y/Z Travel: 800/500/550 mm
Work Table Dimension: 1000 × 500 mm
Max Workpiece Height: 500 mm
Max Worktable Load: 800 kg
Machine Dimension: 2580 × 2210 × 2750 mm
Net Weight: 4500 kg
Why Choose the JTVC-855P3?
For manufacturers seeking a balance of strength, stability, and versatility, the JTVC-855P3 offers an ideal solution. Its advanced structure, reliable tool capacity, superior cutting performance, and operator-friendly design make it an indispensable machine for precision-driven industries.
