JTGS-600Au

Intelligent manufacturing Single/Entire Automation Unit

Moldand component automatic machining

graphite, copper, aluminum, steel, stainless steel, etc

Inquire Now

Advantages of The Product

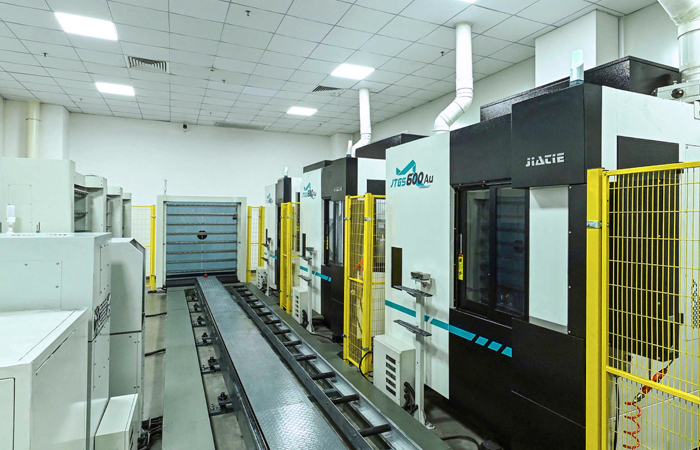

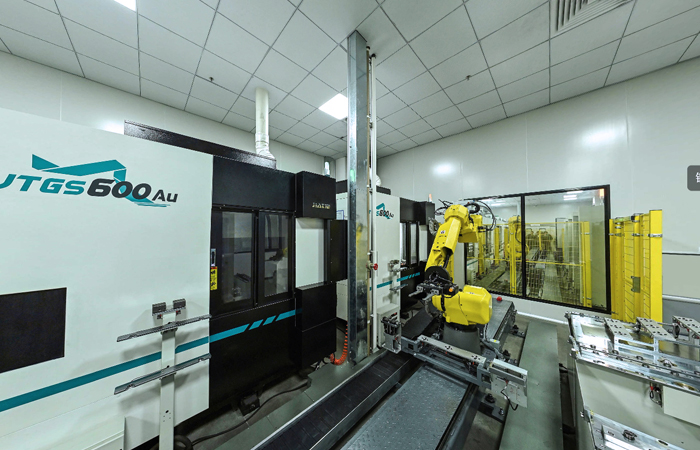

Integrated part loadingand unloading

Robot,storage,controlsystem,achieve continuous production without human interfering

Small projection area

Rapid part changing,high efficiency, low operation cost

MES system connect machine status

accomplishes task management and programtran smission in real-time

Design and layout are suitable for product linedemand

Significantly improves CNC operating and productive efficiency

Features of The Product

Suitable for dry cutting of various graphite products

Brand new structure design improves machine rigidity and makes the machining performance more outstanding.

Brand new anti-vibration technology improves tool service life.

Excellent dynamic machining performance

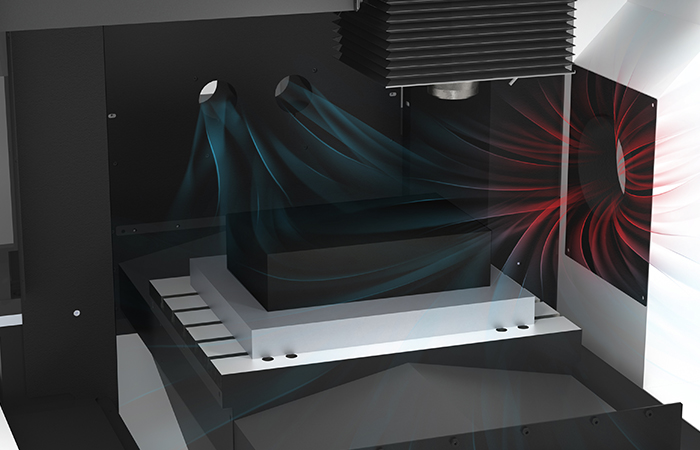

Excellent chip drainage method, suitable for different machining demands.

High-speed and high-accuracy machining quality.

All-in-one design, humanized human-machine interaction interface, easy operation.

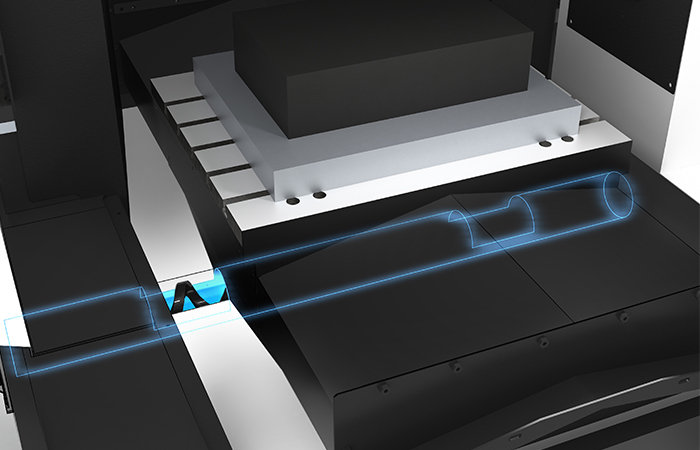

Fully closed loop system, maintains high accuracy

Application Cases

Compound Inserting Parts Automation Solution

Copper Male Automation Solution

Graphite Electrode Automation Solution

Specifications

Items	Technical Parameter
X/Y/Z travel	600/500/300mm
Work table dimension	630x500mm
Max workpiece height	460mm
Max load of worktable	300kg
Machine net dimension	2290×2180×2620mm
Machine net weight	6500kg
Click for details in PDF	Specification Download
